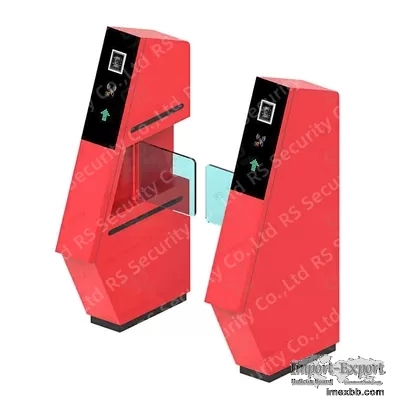

Campus DC Motor Swing Doors Turnstiles 3 Channels Fingerprint Scanner Wing

Campus DC Motor Swing Doors Turnstiles 3 Channels Fingerprint Scanner Wing
Barrier Mechanism
Description


Swing Torniquete RS 116-2 also called:,Swing Barrier,Swing Turnstile,Wing
Turnstiles,Wing Door,.Swing Turnstile RS 116-2 cosist of electric
circuit,mechanism,dc brushless motor,sensors,swing barrier,led
lamp,buzzer,battery etcSwing Tourniquets RS 116-2 the swing door provides
flexible passageway access control,the control width from 300-1600mm.Swing
Barrieres RS 116-2 has different program for pedestrian or bicycle,work with
high sensitivity sensors to ensure safety of people.Swing Barreiras RS 116-2
with standard fire interface,arm can drop down for evacuation even power is not
cut off when fire alarm triggered.Swing Barriers RS 116-2 has standard relay
signal, which can be integrated with any kind of third-party access control
system (e.g.: Fingerprint,Biometric Reader Device,RFID,QR Code,Coin Collector
)and so on.Swing Barreras RS 116-2 is widely used in Subway
Station,Office,Bank,Hotel,Cinema,Airport,Schoo , ls,Supermarkets,Bus etc.Swing
Torniquetes RS 116-2 has sufficient space, which can mount with any type of
external device.( e.g.: led screen,coin insert,card
collector,reader,display,counter,push botton,qr code reader,wheel ).Swing
Barrier RS 116-2 outer covering is made of 1.5mm(standard) 304 stainless steel.





Parameter


Product Name Swing Turnstile,Swing Barrier
Model No. RS 116-2
Size 420*330*980mm
Material 304 stainless steel, acrylic
Channel width standard 600mm (≤900 can be customized)
Thickness of the cabinet 1.5mm+1.2mm
Drive motor DC 24V brushless motor, low noise
Control panel one for one
Traffic direction one-way traffic/two-way traffic; traffic speed: 35-40
people/minute
Passing speed 35~40 person/minute
Opening methods ID/IC card and other readers to verify opening, infrared
induction automatic opening, button opening, etc.
Opening signal dry contact signal
Protection functions encoder limit, electromechanical anti-collision,
infrared anti-clamping, infrared alarm for illegal intrusion
Life ≥9 million times
Infrared quantity 6 pairs
Power 30-60w
Applicable temperature : -20~75ºC



Function
Campus DC Motor Swing Doors Turnstiles 3 Channels Fingerprint Scanner Wing
Barrier Mechanism 0



Swing Turnstile are compact and cost-effective entrance/exit security
solutions.
The body is made of brushed stainless steel which is robust, rigid, anti-rust,
waterproof and durable.
It is ideal for both indoor and outdoor settings.
It has standard relay signal, which can be integrated with any kind of third-
party access control system (e.g.: RFID, Fingerprint and Biometric reader
device).
It has sufficient space, which can mount with any type of external device(
e.g.: Display, Counter, Reader, Push button,
Card collector, Coin insert, Barcode/QR reader, Wheel).
In case of emergency, tripod turnstile horizontal arms will drop down
automatically to allow free passage when power off.
Anti-tailing function: only one person passes at one time.
It is suitable for areas with general pedestrian traffic. (e.g.: Park, School,
Factory, Library, Cinema, Gym).
Diagram


Campus DC Motor Swing Doors Turnstiles 3 Channels Fingerprint Scanner Wing
Barrier Mechanism 1





Long-life performance, high operation dependability and fast response.
The whole system runs smoothly, low noise, no mechanical impact.
Single directional or Bi-directional is selectable.
Automatic reset function: turnstile arm will lock automatically
within 5s (can be setting) if passenger delay to entry.
When power is off, arms will drop down automatically, which is complying with
fire safety requirements.
LED indicator (red × means no entry; green →means entry).
Easy to install and maintain.
3-year warranty support.
