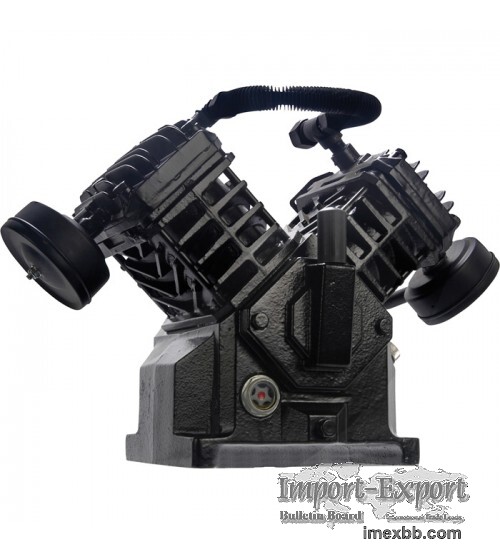

Campbell Hausfeld Cast Iron Single Stage Air Compressor Pump Fits Campbell

The Campbell Hausfeld TQ Cast Iron, Single-Stage Air Compressor Pump with solid cast iron cylinders operates up to 35% quieter and 60°(F) cooler than aluminum pumps with cast iron sleeves. The unique TQ single-stage pump provides the airflow of a 2-stage pump at a single-stage compressor cost. The TQ design delivers higher CFM per dollar and will provide years of smooth, quiet, troublefree life.


What's Included

(1) Pump with flywheel, breather and air filter



Features + Benefits

Fits all Campbell Hausfeld CE4XXX or TQ3XXX models
Provides air flow of 2-stage compressor at single-stage compressor cost
Solid cast iron cylinders for rugged performance, cooler operation and long life
Drivetrain utilizes automotive style pistons, a ductile iron crankshaft and heavy-duty ball bearings for years of reliable service
Advanced valve plate design uses stainless steel reed valves and Viton O-ring seals to provide troublefree performance
Deep finned aluminum head provides maximum pump cooling
Easy-to-read oil level sight gauge
Optimally balanced crankshaft for smooth troublefree operation
Removable air filter provides easy maintenance and maximum air flow
Two-piece connecting rods for easy maintenance
Easy fill oil port for easy maintenance
Thick head flange provides superior seal on head gasket
Rated for 10,000 hours (based on bearing B-10 life)

Key Specs
Item# 54520
Brand Campbell Hausfeld
Ship Weight 84.0 lbs
CFM at 90 PSI 16
Max. PSI 135
HP 5
Flywheel Diameter (in.) 14 1/2
Stages 1
Total Cylinders 4
Required Power 5 HP
Bore Diameter (in.) 2 3/4
Stroke Length (in.) 2
Dimensions L x W x H (in.) 17 2/5 x 17 1/2 x 18



Visit our website OFFICIAL STORE VIDMARTOOLS for transaction, full Description

Minimum Order: 1 sets
