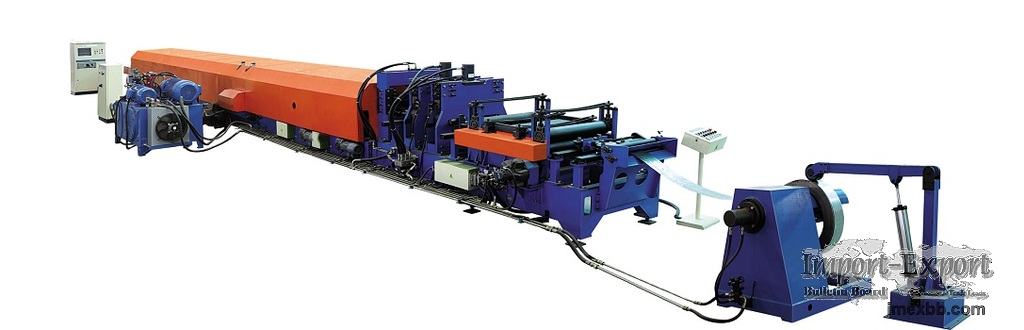

C&Z Changeable Purlin Forming Machine

The control system of C&Z purlin forming machine includes an industrial
computer, communicating with PLC through RS485 connector. The system adopts
WINDOWSXP with software IFIX. It can remind fault automatically, having a limit
setting, the report forms administrators, mass data storage products and
dynamic pictures showing function, etc. The outlet of the machine is beautiful,
has high working efficiency.

Supply List of C&Z Changeable Purlin Forming Machine
No. Name Qty. Remark
1 Uncoiler 1 Set Hydraulic uncoiler with press arm
2 Guiding device 1 Set
3 Leveling device 1 Set
4 Punching device 2 Sets
5 Pre-cutting 1 Set
6 Forming system 1 Set
7 Movable safety cover 1 Set
8 Finished products stacker 1 Set 9m Stacker
9 Hydraulic system 1 Set
10 Electrical system 1 Set

Main Parameters of C&Z Changeable Purlin Forming Machine
1)Please check the profile drawings for products' sizes made by C&Z changeable
purline machine.
2)Coil thickness: 1.5-3.0mm (under coil stress at 350Mpa)
3)Punching transverse width range: 45~360mm(when punching hole diameter isφ14)
4)Min. panel length: >3m5) Max. forming speed: 25m/min6) Total power: 63.9KW7)
Roller stands: 19

Panel Drawings Of C&Z Changeable Purlin Forming Machine

Jinggong is a professional purlin roll forming machine manufacturers, we
provide c purlin roll former, building materials machinery, construction
materials equipment, sandwich panel lines and etc. Want to know more? Please
contact us.
