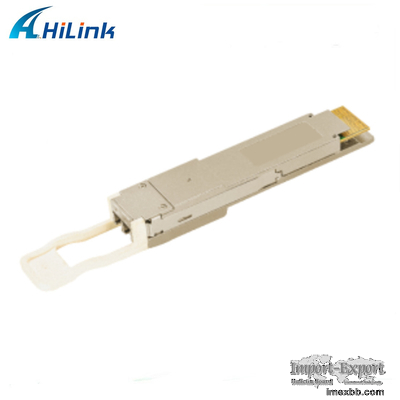

C Band 75/100GHz 400G Coherent Module QSFP-DD ZR 80~120KM for DCI Applications



This product is a coherent module, compliant with the OIF 400ZR MSA and QSFP-DD
MSA standards, is designed for DCI applications. The digital diagnostics
function is available via an I2C interface, as specified by the QSFP-DD MSA.

The product is a C-band 75G/100 GHz grid coherent optical module that combines
coherent DSP ASIC functionality with best in class ultra-narrow line-width
tunable lasers, high speed modulators and high responsively coherent receivers
to deliver high performance at 400G 16QAM modulation formats (at 60G baud
rate).





C Band 75/100GHz 400G Coherent Module QSFP-DD ZR 80~120KM for DCI Applications
0




Features





QSFP-DD MSA compliant
Compliant with OIF 400ZR, version 01.0, March 10, 2020
Digital diagnostic monitoring support
Hot pluggable by 76-pin electrical interface
Maximum power consumption 16.5 W
400G 16QAM modulation
Compact size (18.4 mm x 93.4 mm x 8.5 mm)
LC duplex connector
400GBASE-R, 425 Gbps bit rate
400G-AUI-8 C2M; 8 x CEI-56G-VSR PAM-4 electrical interface
Operating case temperature: 0°C to 70°C
Single 3.3 V power supply
RoHS 2 compliant


Optical Characteristics


Parameter Min Typ Max Unit
Conditions


Transmitter
Transmitter frequency range

191.3

193.7

196.1

THz
TU-T grid. Frequency range over which the specifications hold unless noted
otherwise. The frequency is fixed at 193.7 THz for unamplified link
applications.

Transmitter laser frequency stability

-1.8 1.8 GHz
Offset from channel frequency set point. The receiver LO has the same frequency
accuracy.

Transmitter output power

-10 -6 dBm
Measured at optical connector.

Transmitter output power with TX disabled

-20 dBm
Max Output power with TX_DIS asserted

Transmitter output power during wavelength switching



-20 dBm
Transmitter reflectance

-20 dBm
Transmitter polarization dependent power

Mean I-Q amplitude imbalance

1 dB
Transmitter polarization dependent power

1.5 dB
Power difference between X and Y polarization

Receiver
Frequency offset between RX and LO

-3.6 3.6 GHz
Acquisition Range

Input power range

-12 0 dBm
Input sensitivity (amplified link application)

-12 dBm
Input sensitivity (unamplified link application)

-20 dBm
For unamplified link applications, the minimum input power is –20 dBm
@receiver OSNR tolerance ≥ 34 dB.

OSNR tolerance (amplified link application)

26 dB/0.1nm The OSNR tolerance is referenced to an
optical bandwidth of 0.1 nm @193.7 THz or 12.5 GHz.
OSNR tolerance (unamplified link application)

34 dB/0.1nm
The OSNR tolerance cannot be less than 34 dB for unamplified link applications.

Optical return loss

20 dB
Optical reflectance at connector input

CD Tolerance

2400 ps/nm
Tolerance to chromatic dispersion

Optical path power penalty

0.5 dB
OSNR penalty tolerance due to –35 dB interferometric crosstalk and 2400 ps/nm
chromatic dispersion.

PMD tolerance

10 ps
Tolerance to PMD with ≤ 0.5 dB penalty to OSNR sensitivity. 10 ps of PMD
corresponds to max 30 ps of DGD and max 500 ps2 of SOPMD

PDL tolerance (amplified link application)

3.5 dB
Tolerance to PDL with < 1.3 dB penalty to OSNR sensitivity When change in PSP
is ≤ 1 rad/ms.

PDL tolerance (unamplified link application)

2.5 dB
The PDL tolerance is 2.5 dB in unamplified link application when the reciever
OSNR sensitivity penalty is 0.8 dB.

Tolerance to change in SOP

50
krad/s

Tolerance to change in SOP with ≤ 0.5 dB penalty to OSNR sensitivity.
Measurement relative to reference with 10 ps PMD and 2.5 dB PDL and SOP of < 1
rad/ms under the same conditions.

Optical input power transient tolerance

±2

dB
Tolerance to change in input power with ≤ 0.5 dB penalty to OSNR sensitivity.
Received power is within –12 dBm to 0 dBm. Rise/fall times of power change
defined by 20%–80% of 50 µs or slower.
