Bulletproof Shield-NIJ Level IllA with a Reliable Labor-saving Design

Heavy duty triangle ambidextrous handles
LED lighting system(Optional)
Ambient temperature: -25℃~+55℃
Protective gun type: 1979 7.62mm light machine gun
BulletStop: 1951 7.62mm bullet (lead core)
Connection strength: The hand-held handle is of a rigid structure; and the
joint connecting the handle and the shield is subjected to a tensile force of
600 N without cracking.
Model FDD-LK-01
Materials UHMWPE
Standard Size 500900 mm
Protection Level NIJ Level IIIA
Weight 5.1 KG
Protection Area 0.45 m²

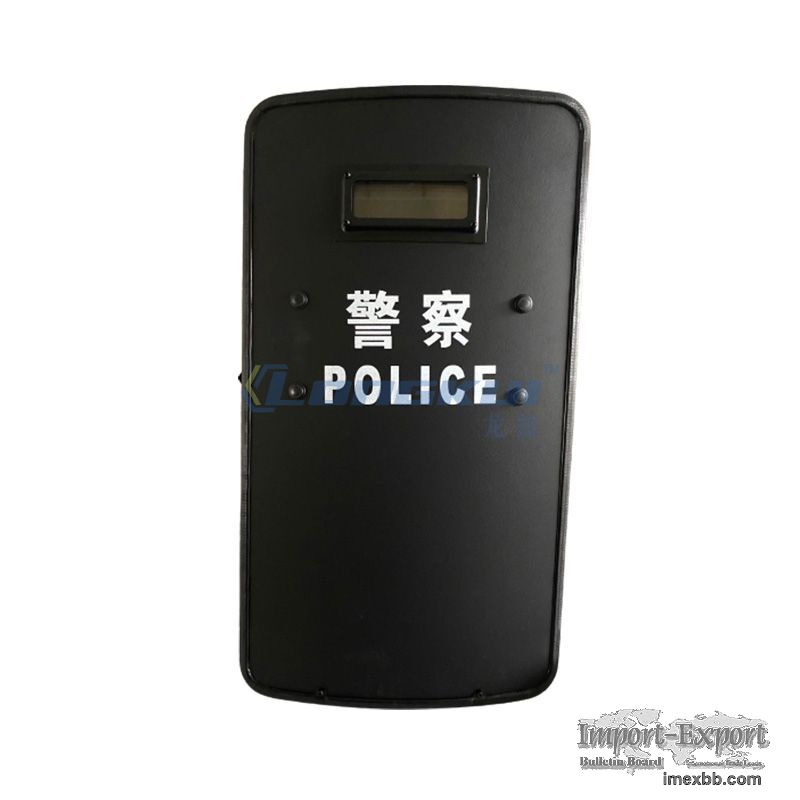

The bulletproof shield is composed of a shield, an observation window, a
handle, a cushion and a belt for arm fixation.
Made of UHMWPE fiber, the ballistic shield is suitable for public security
police, armed police soldiers and anti-terrorist forces to carry our tasks such
as combating gun criminals for its features of light weight, convenience and
flexibility of use and observation, no ricochet, no bulletproof dead zone,
ability to eliminate non-penetrating injuries, and resistance to bullet, riot,
water, UV and blunt.
The shield is equipped with a transparent ballistic window with the light
transmittance greater than or equal to 70%. The size of the observation window
is W185mm ×H75mm. The bulletproof glass structure used in the observation
window is composed of 8.0mm thick glass, 1.52mm thick PVB, 8.0mm thick glass,
1.25mm thick PU and 4.5mm thick PC board in turn.
