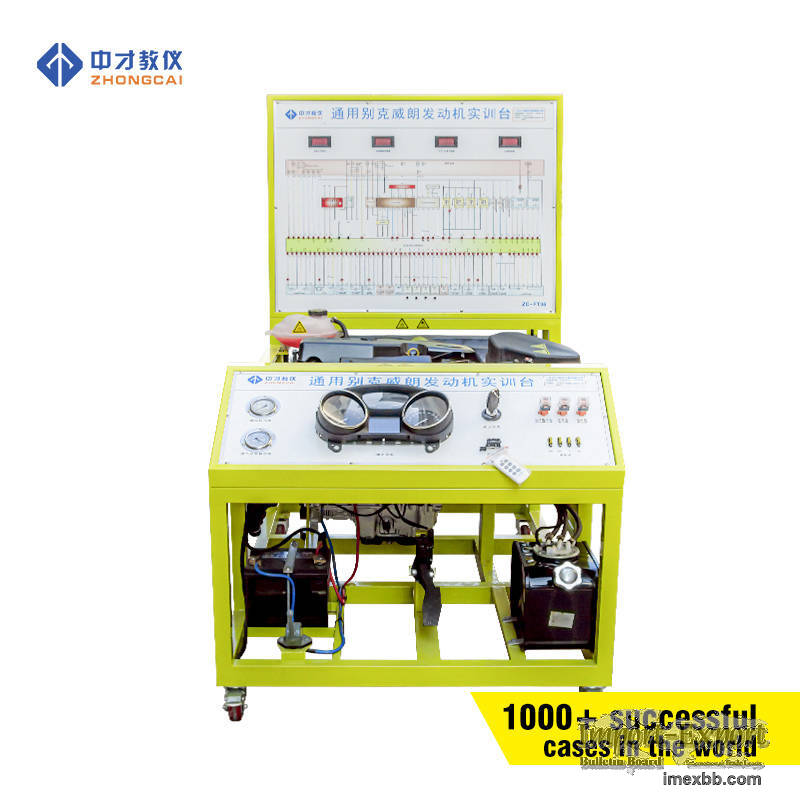

Buick Veracruz engine training bench

Product Overview:
The training bench is composed of Buick Verano LG3 electronically controlled
gasoline engine assembly, the training bench can start the engine, run
experiments, the teacher combined with the training bench teaching panel to
teach the control principle of the engine to train students to analyze and
solve the actual fault ability, forming an organic combination of theory and
practice; suitable for secondary and higher vocational and technical schools
and automotive training institutions of automotive engine construction and
maintenance training Practical teaching, to meet the different levels of
schools on the structure of electronically controlled gasoline engine
components, working principles, fault settings and diagnosis of teaching needs.

The main components:
engine assembly, engine electronic control unit, instrumentation, ignition
switch, fault setting system, oil pressure gauge, vacuum gauge, fuel tank,
battery, diagnostic socket, cooling system (water tank, fan, fan cover, upper
and lower water pipe), exhaust system, and the engine computer pin one to one
correspondence of the signal detection area, LED lights, signal table, safety
cover, removable table, etc.

Functional features :
(1) The engine works normally, a real response to the structural composition
and working process of the EFI gasoline engine.
(2) Engine training table with dynamic operation and display functions, the
original instrumentation, digital table real-time display of dynamic and static
engine signal parameters.
(3) Assembled with LED lights to show the working state of injector pulse and
ignition pulse-related components.
(4) Teaching panel installed with a complete color engine electronic control
system circuit working principle diagram, ECU terminal function, injection
system LED indication, etc., to facilitate the teacher to explain the system
knowledge more intuitively.
(5) The training bench is installed with a diagnostic socket, which can be
connected to a special or general-purpose car decoder to read fault codes,
clear fault codes, read data streams and other engine self-diagnostic functions
for the engine electronic control system.
(6) Self-diagnostic functions: dynamic and static data stream reading, fault
code reading, waveform analysis, actuating element action test, etc.
(7) Electronic control system detection function: the teaching panel is
installed with computer lead terminals, which can use multimeter and
oscilloscope to detect each sensor and actuator resistance, voltage, frequency,
waveform.
(8) The training bench is equipped with a fault-setting assessment device
suitable for teaching, which can set one and more common faults to meet the
assessment requirements of vocational skills teaching.
(9) The training bench measurement panel is painted with colorful spray-painted
circuit diagrams, using 4mm thickness of high-strength aluminum spray-painted
panels, with a large temperature difference, wear-resistant, moisture-proof,
anti-corrosion, not easy to deformation, long service life, bright colors, not
easy to fade and other characteristics.
(10) Training bench using international standard steel welding, with light
quality, high strength, corrosion resistance, long life, etc., after spraying
process, the appearance of more beautiful high-grade, the table with self-
locking casters device, mobile and flexible, safe, reliable, durable.

Technical parameters:
Table size: 1500 * 1000 * 1700mm (L * W * H)
Working power: 12VDC
Fuel standard: 92#
Weight 150KG

Minimum Order: 1 sets
