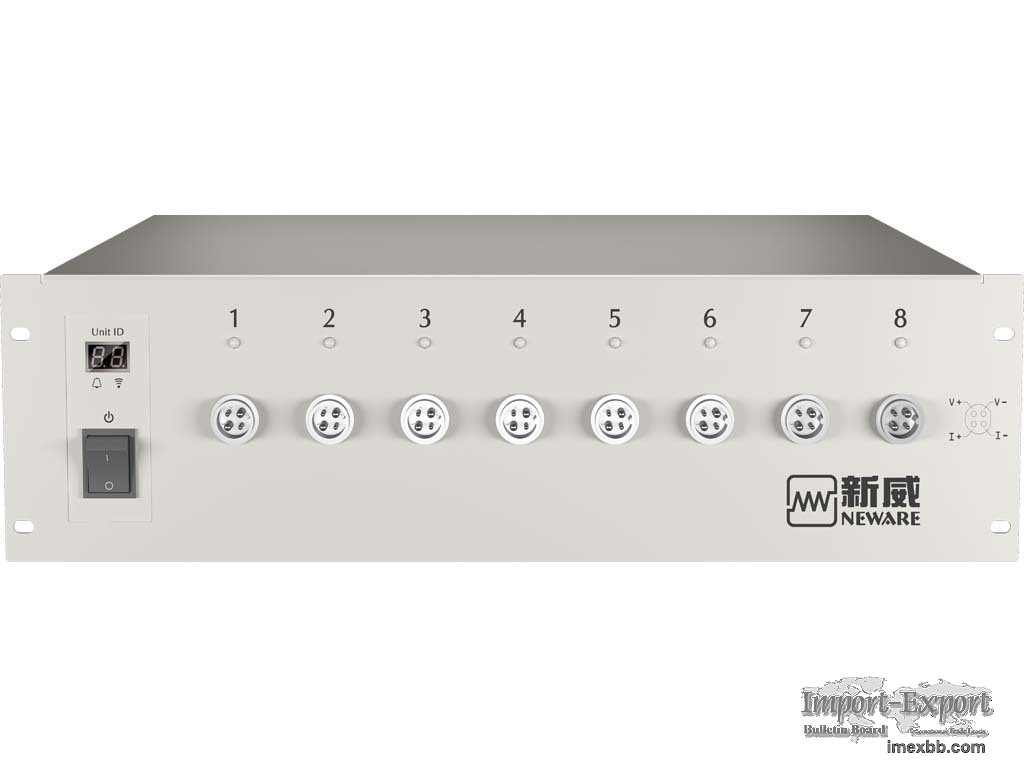

BTS5V12A Neware Battery Testing Equipment

Product Introduction:
1.Neware BTS5V12A battery testing equipment provides most applications in
cylindrical cell and pouch cell capacity Testing.It based on charging
discharging battery under different modes. It controlled by the Monitor
Software installed at computer. Monitor software to edit testing program and
BTSDA to analysis tested data.
2.Every unit BTS5V12A battery testing equipment has 8 channels and could be
installed Max.10 units on a rack make up 80 channels.Each of channel could work
independently with different charge discharge program at same time.
3.Neware battery testing equipment has constant current charge,constant voltage
charge,constant current and voltage charge,constant power charge,constant
current discharge,constant voltage discharge,constant power discharge,constant
resistance discharge.
4.5V12A battery testing equipment widely used in Pouch Cell Testing,Mobile
Battery Testing,Cylindrical Cell Testing,Production Line Testing,Super-
capacitor Testing and Lab Battery Materials Research.
5.The Neware battery testing equipment is suitable for all kinds rechargeable
batteries such as lithium battery, NI-MH battery, Zn-Mn watch battery and so
on.

Key Technology Parameters:
Voltage Range:25mV~5V
Lowest Discharge Voltage:1.5V
Voltage Testing Precision:±0.05%

Current Range 1:5mA~1A;
Current Range 2:1A~6A;
Current Range 3:6A~12A
Current Testing Precision:±0.05%

Primary Applications:
Pouch Cell Testing
3C Batteries Testing
Mobile Battery Testing
Cylindrical Cell Testing
Production Line Testing
Super-capacitor Testing
Lab Battery Materials Research

Key Features:
DCIR Testing
Pulse Testing
Capacity Testing
Cycle Life Testing
Testing Data Analysis
Charge/Discharge Testing

Minimum Order: 1 sets
