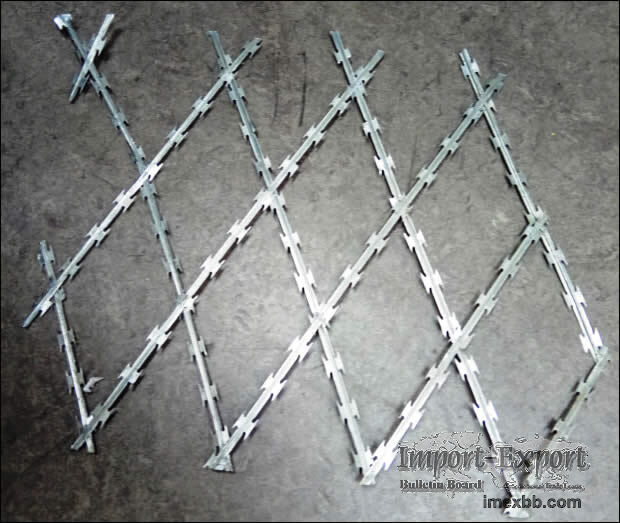

BTO-22 WELDED SECURITY RAZOR MESH

The offered should have finished sizes of 1.80x6.00m, made of galvanized steel
razors of 27 – 30mm, having thickness > 0.5mm in a straight distance among
them of 40-50mm, width (upper razor and bottom razor plate) approx. 21mm and
steel wire of > 2mm thick, having high tensile strength and above 1500MPa.

The rhombus shall have approx. 150x300mm sizes.
At the connecting points, both vertically and horizontally shall be over
covered with staples/clips, according the manufacturer’s instructions.

Galvanization
The galvanization of all parts of the welded razor mesh, having finished sizes
of 1.80x6.00m and rhombus dimensions of 150x300mm shall be ≥210gr/m2.
Whenever on the galvanized parts are made any holes / processing, etc., the
galvanization should be effected after these are made.

Packing
Shall be suggested from the supplier, for safety handling and transport
arrangements.
