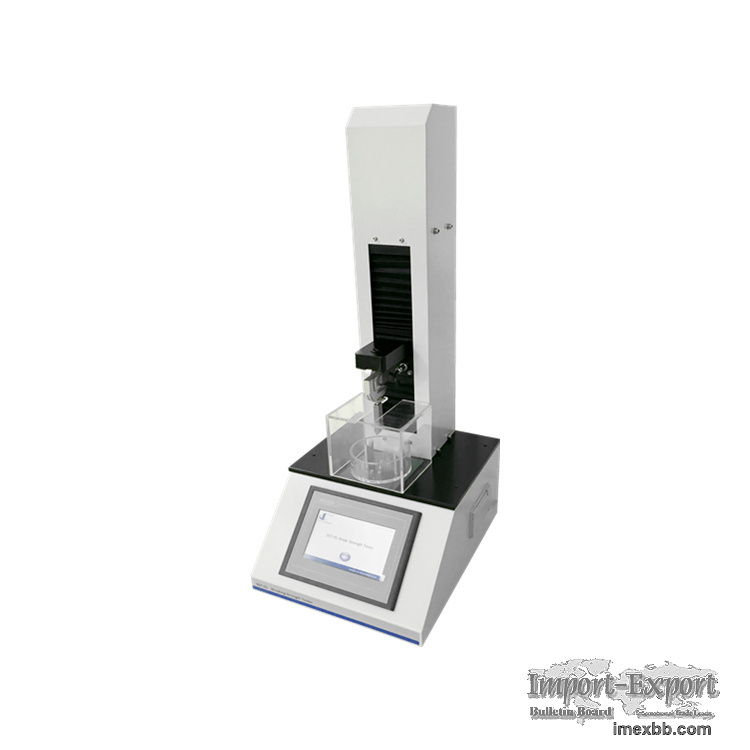

BST-01 Ampoule Breaking Tester

Background
Ampoules are commonly used to store pharmaceutical substances. They are sealed
hermetically by melting the thin top using an open flame. The neck of the
ampoule is usually designed to be snapped off for easy access to the contents.
The breaking force of the neck is a critical factor as it affects both the
safety of the pharmaceuticals inside and their clinical application.

Application
An Ampoule Breaking Strength Tester is designed to quantitatively test the
breaking strength of ampoules. This equipment is used to measure how much force
is required to break the ampoule neck.

Standards
Several standards govern the testing of ampoule breaking strength, ensuring
consistency and reliability in the testing process. ISO 9187, GB 2637,
YBB00332002

Test Process
An ampoule sample is place on the fixtures and the pressing head is driven down
by the power system at the speed of 10 mm/m. The breaking strength is detected
by the high precision load cell when the pressing head touches ampoule neck and
breaks it.

Technical Features
BST-01 Ampoule Breaking Strength Tester is a highly versatile and advanced
piece of equipment with a wide range of applications in the pharmaceutical and
medical sectors. Its technical features, including constant rate of
displacement, industrial-level stability, PLC control, stepper motor precision,
and safety measures, make it a valuable tool for various testing needs beyond
ampoule breaking strength, such as such as compression, cap opening, syringe
gliding force, puncture, stopper penetration etc.

The device's standout features encompass a PLC control unit, an HMI touch
screen, and a stepper motor with a precision ball-lead screw for precise speed
control. Safety is prioritized through features like a collecting tube for
broken samples and a protective cover for samples that may jump during testing.

Below are additional characteristics:
1.Test fixtures in varying capacities: 1ml, 2ml, 5ml, 10ml, and
20ml, accommodating different specifications.
2.Availability of multiple fixtures for testing various materials
used in medical packaging.
3 .Incorporation of a limiting device and an automatic return
function.
4.Adjustable test speed to suit different requirements.
5.Equipped with a dot matrix microprinter.
6.Provision of a protective cover.
7.Optional inclusion of RS 232 connectivity and professional software.
