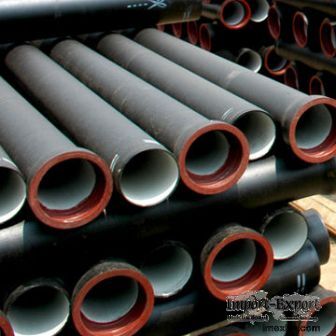

BS EN 598:2007 Ductile Iron Pipe

BS EN 598 Ductile Iron Pipe Offer: Ductile Iron Pipe, ISO 4179, BS EN 545:2002, BS
EN 598:2007, DN80-1400, Length 5.7m, 6m, Class K7, K8, K9, K10, K12.

Joint type: spigot and socket tyton joint.
Diameter: DN80-1400 mm.
Length: 5.7, 6m.
Internal anticorrosive lining.
Common on CML (cement mortar lining), or high alumina CML
Highly wear resistant.
External anticorrosive property.
Standards: ISO 4179, BS EN 545:2002, BS EN 598:2007.
External anticorrosive coating.
Metallic zinc coating 130, 150, 200gsm.
Bituminous coating minimum 70um.
Working temperature: -25℃ to 180℃.
Sealing gasket NBR, SBR, EPDM, or nature rubber ring as per ISO 4633.
Fittings: tyton ductile iron fittings.
Wall thickness class: K7, K8, K9, K10, K12.

Minimum Order: 1 sets
