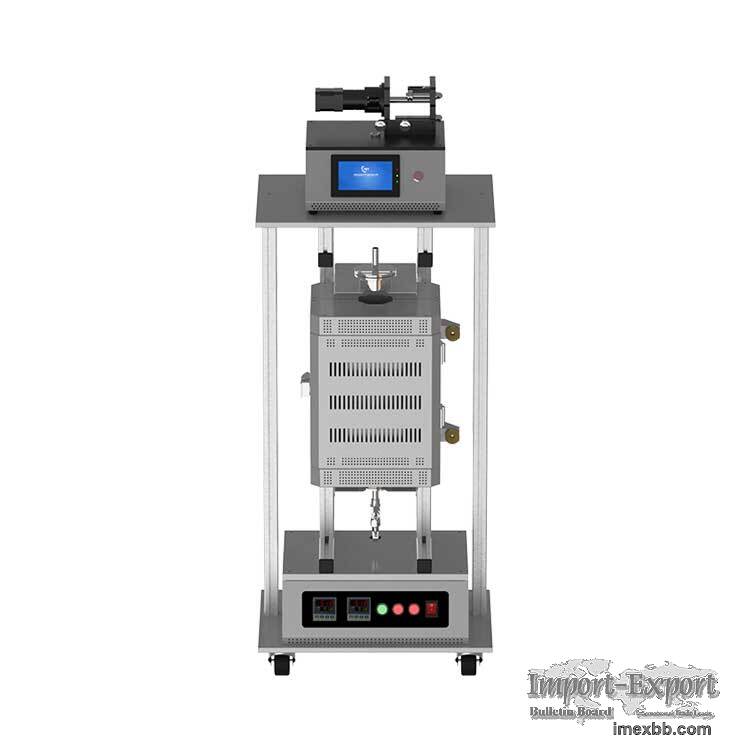

Bridgman Crystal Growth Furnace with Hanging Wire Mechanism Up to 1100℃

Compact Bridgman Crystal Growth Furnace with Hanging Wire Mechanism Up to 1100C

CYKY-1200X-S-VT-BMGH is a compact and economic 1200ºC Maximum Bridgman crystal
growth furnace with 2" quartz tube and precision hanged wire travel mechanism,
which is designed for growing small size crystal under control atmosphere or sealed
quartz crucible at low cost.

Vertical Two Zone Tube Furnace
1. Compact two zones split vertical tube furnace
2. Working Voltage: 110V AC or 220V selectable
3. Max. Power Consumption: 1.5 KW
4. Two Heating Zone: 100 mm L for each Zone, 200 mm L in total
5. Max. heating temperature: 1200°C
6. Continuous working temperature: 1100°C
7. Two programmable digital temperature controllers which control two heating zone
independently
8. Max. Temperature gradient: 1ºC/Cm
9. Finding a suitable thermal gradient is user responsibility
10. Adjusting two heating zone's temperature can create different thermal gradient
profile
11. Adjusting furnace opening diameter also can change the thermal gradient
12. Quartz tube (2" quartz tube (50mm O.D x 44mm I.D x 600mm L) is included with
sealed flange)

Hanging wire
1. One set of Ni-SS hanging wire is included (pic to the left). Max. working
temperature is 800C.
2. Optional hanging wire for higher working temperature is available upon request:
3. Ni-Cr-Al wire (not included) Max. working temperature < 1100°C
4. Platinium wire (not included) Max.working temperature > 1200°C and < 1600°C
5. A thin hanging wire goes through the top flange. A positive inert gas can keep
processing tube under controlled atmosphere
6. For air-sensitive material, the sample shall be sealed in a small quartz tube
with pre-vacuumed as Pic below right
7. 800C pulling wire (Ni-SS)        sealed quartz tube as the crucible

Motor and Controller
1. 6"L x 4"W Touch Screen
2. Wire descending speed is programmable within 3 segments.
3. Precise DC stepper motor controls traveling speed.
4. Pulling  speed range: 1-500 um/sec adjustable  with the accuracy of +/-
0.05%
5. Total stoke length controlled by touch screen: 350mm
6. Power: 50W, 110V - 240V C

Optional:   Lower speed range is available upon request at extra cost.
Product Dimensions ：520mm (L) x 430mm (W) x 1100mm (H)
Compliance：CE Certified/NRTL certification is available upon request at an extra
cost
Warranty：One Year limited warranty with lifetime support
Consumable parts such as processing tubes, O-rings, and heating elements are
not covered by the warranty

Minimum Order: 1 sets
