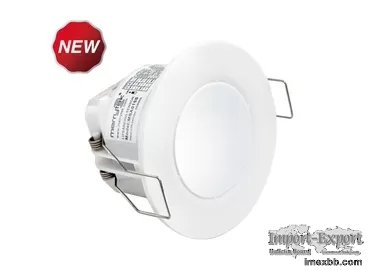

Breathing Detecting Microwave Motion Sensor MSA015S

Product Description
MSA015S

LifeBeing sensor

Breathing Detecting Technology/ON-OFF



Innovative patent energy-saving switch, control lights ON-OFF automatically.
Traditional switch is needless.
A very sightly movement even human breathing can be collected, never worry a
sudden shut-off when light is necessary.
Interference-free with flying insects, falling leaves, air vent and wireless
signal(WiFi, Bluetooth, 4G and 5G).
Adjustable detecting settings, suitable for various places, such as toilet,
kitchen, office, library, corridor etc..


Rated Voltage 220-240VAC 50/60Hz
Stand-by Power <0.5W
Load Capacity 400W (Inductive) 800W (resistive)
Detecting Technology Movement / minor motion / breathing
Working Mode On-off
Operating Frequency 5.8 GHz ±75 MHz, ISM band
Transmitting Power 0.5mW Max.
Hold Time 5S/3Min/5Min/10Min/15Min/20Min/25Min/30Min
Detection Area 100%/75%/50%/25%
Daylight Sensor 5lux/25lux/50lux/Disable
Mounting Height 3-6m
Operating Temperature -25~55℃
IP Rating IP20
