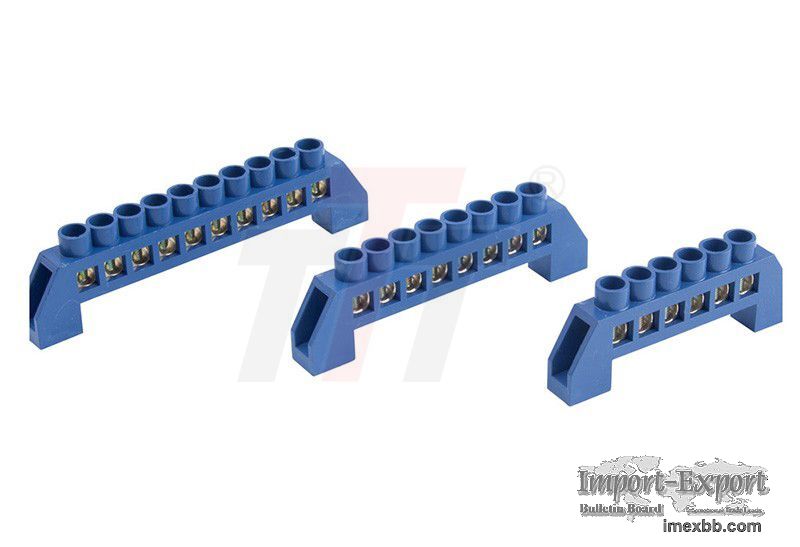

Brass Terminal Bar with Fixing Part GK001-0609

Brass Terminal Bar with Fixing Part GK001-0609

Terminal series use high quality brass raw material,has the characteristics of
high-current- carrying capacity, convenient-wiring and durable quality.With
acid-pickling treatment, products are  not easily oxidized.Due to Precisely
manufacturing, it  avoid the difficultyof reinstallation after many times .

Pole No. Installation Dimension(mm) Outline Dimension(mm)
Sectioncross of Brass(mm2)
4 48.2 59.2*11.2 6*9
6 65.4 76.4*11.2 6*9
8 82.6 93.6*11.2 6*9
10 99.8 110.8*11.2 6*9
12 117 128*11.2 6*9

Requirements to a Brass Terminal body
1 The terminal body is  manufactured from copper-zinc alloy
2 The terminal body is to be manufactured in parallelepipedal shape with
mutually perpendicular side planes. Deviation of perpendicularity is no less
than 0,1mm
3 The other sharp edges are to be blunted
4 The surface of holes for wire mounting is to be smooth without burrs, edge
fins and etc.
5  The form of thread into threaded openings is to be full without edge fins.
Every opening is to have no less than three full turns of a thread
We are Power Distribution Block Supplier.

Requirements to a terminal
1 The terminal is to be equipped with screws in the quantity equal to the
quantity of contact groups for the wire fixing
2  The screws are not to create troubles to next screws at the operation
3  Dimensions and completed set of terminals are to correspond to design
documents.
4  Operation temperature range could be from minus 40 to plus 50 °С.

Outgoing inspection of High-Quality Brass Terminal
Visual Check:
Bring out the absence of outer damages, deep scratches, cracks, chips,
corrosion on the terminals and screws.
All screws are to be entirely tightened.
Temperature Rise Test :
 5% of the batch of each standard size, but not less than 10 pcs.
Flame Retardant Test:
 5% of the batch of each standard size, but not less than 10 pcs.
Certifications:
CE, can be of ROHS at your decision
