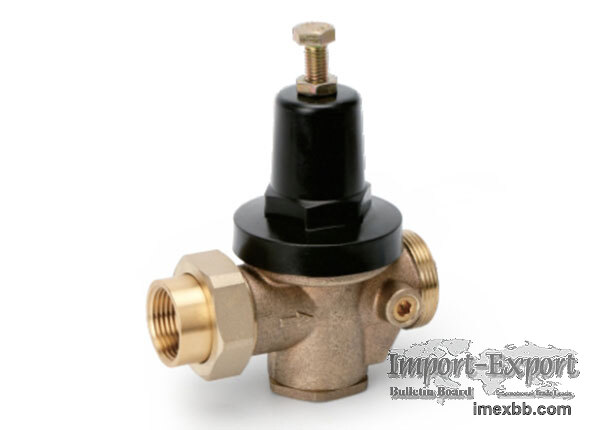

Brass Pressure Reducing Valve

The brass water pressure reducing valve is used to change the throttling area
and change the fluid's flow rate and kinetic energy to prevent further pressure
losses, achieving the goal of pressure reduction. The brass water pressure
regulator with gauge is an automatic OEM brass ball valve that relies on the
energy control of the medium itself and the adjustment of the regulating system
to balance the fluctuation of the pressure behind the valve with the spring
force so that the pressure behind the valve remains constant within a specific
error range.

Brass Pressure Reducing Valve Details:

The adjusting pressure reducing valve produced by water pressure reducing valve
manufacturers is usually positioned upright on a horizontal pipeline for ease
of operation and maintenance.
Brass Pressure Reducer Specifications

CB-2004 Pressure Reducing Valve

Pressure Medium Temperature Product Information
1.6MPa water, steam, noncorrosive liquid 1. -20℃≤t≤80℃ 1/2"
3/4" 1" 1-1/4" 1-1/2" 2"


CB-2150 Pressure Reducing Valve

Pressure Medium The highest temperature Maximum inlet pressure Product
Information
1.6MPa water 80℃ 1.6MPa 1/2" 3/4" 1" 1-1/4" 1-1/2" 2"
3" 4"


CB-2105 Pressure Reducing Valve

Material Pressure Operating temperature P/N SIZE H
B L
Bronze 400psi -10℃≤T≤110℃ 21051 1/2" 117.6 41 98
21052 3/4" 120.4 43.4 100.5
21053 1" 120.4 54.6 119

CB-2106 Pressure Reducing Valve

Material Pressure Operating temperature P/N SIZE H
B L D N
Bronze 400psi -10℃≤T≤110℃ 12331 1/2" 120.4 45.9 91.8 12
9
12332 3/4" 120.4 46.8 93.6 17 13.5
12333 1" 120.4 50.3 100.6 21.8 18.2

CB-2203 Pressure Reducing Valve

Material Pressure Operating temperature P/N SIZE DH
H B L
Bronze 400psi -10℃≤T≤110℃ 22031 1/2" 16.1 120.4 61.5 121
22032 3/4" 22.2 120.4 63 124.5
22033 1" 28.5 120.4 65.5 129




CB-2213 Pressure Reducing Valve

Material Pressure Operating temperature P/N SIZE L
H
Bronze 400psi -10℃≤T≤110℃ 22131 3/8" 101.6 165.5
22132 1/2" 105 165.5
22133 3/4" 109 165.5
22134 1" 112 165.5


CB-2213 Pressure Reducing Valve

Material Pressure Operating temperature P/N SIZE H
B C G L F
Bronze 400psi -20℃≤T≤180℃ 22131 1/2" 130.3 35.2 43 41.2
134.5 23.39
22132 3/4" 130.3 35.2 43 41.2 134.5
17.78



Brass Water Pressure Reducing Valve Benefits
The internal thread is connected to the brass pressure reducing valve, which
has a compact size. The brass water pressure regulator with gauge is easy to
install and other features, and with a built-in filter, which can facilitate
the overall installation operation, avoid clogging by debris and make it safer
and more reliable.

The unvented pressure reducing valve produced by our factory is a direct-acting
adjustable pressure reducing valve. Using diaphragm type hydraulic operation
can be installed horizontally or vertically in water supply, fire fighting
system, or other clean water systems. The outlet pressure of the brass ball
valves for water can be controlled to a relatively fixed value within a
particular flow range. Both the dynamic and static pressure is reduced, and the
operation is stable, with no noise, no vibration, water hammer reduction, and
pipe network protection.

The proportional pressure reducing valve is suitable for installation at any
angle. Lightweight, small size, convenient installation, and maintenance.

As a professional bronze valve manufacturer, we provide brass water heater
drain ball valve, 3 4 in brass fpt water pressure reducing valve, 1 2 in brass
fpt x fpt pressure reducing valve, 1 inch ball valve brass, etc. Want to know
more, contact us.
