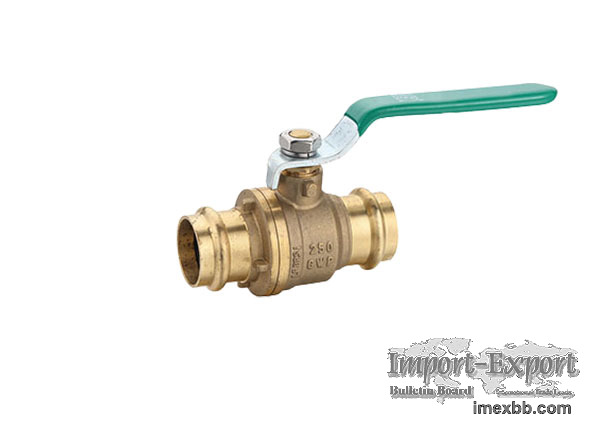

Brass Ball Valve

The brass ball valves for water is evolved from the cock. Its opening and
closing part is used as a sphere, which uses the sphere to rotate 90° around
the axis of the valve stem to achieve the purpose of opening and closing. The
ball brass valve can cut off, distribute and change the flow direction of the
medium, and the Carbo oem brass ball valve also has a good flow regulation
function. As a professional brass ball valve supplier, we are committed to
providing high-quality brass ball valve and services for customers. The
different types include brass ball valve with drain, press ball valve and so
on. If you want to buy brass gas ball valve and learn more about our brass ball
valve specification and the brass ball valve price list, please feel free to
contact us!
Different Brass Ball Valve Sizes Available

Products Category 1 Code Category 2 Code Size Port Size

Push ball valve 1BVDa02-130 1BVDb02-130 1/4 0.315"
1BVDa03-130 1BVDbO3-130 3/8 0.394"
1BVDa04-130 1BVDb04-130 1/2 0.59"
1BVDa06-130 1BVDb06-130 3/4 0.787"
1BVDa08-130 1BVDb08-130 1 0.984"

Pex Ball Valve 1BVFbO4-130 1BVFCO4-130 1/2 0.59"
1BVFb06-130 1BVFc06-130 3/4 0.787"
1BVFb08-130 1BVFcO8-130 1 0.984"
1BVFb10-130 1BVFc10-130 1.1/4 1.26"
1BVFb12-130 1BVFc12-130 1.1/2 1.575"
1BVFb14-130 1BVFc14-130 2 1.968"

Brass Ball Valve 1BVBc04-130 1BVBd04-130 1/2 0.590"
1BVBc06-130 1BVBd06-131 3/4 0.787"
1BVBc08-130 1BVBd08-132 1 0.984"
1BVBc10-130 1BVBd10-133 1.1/4 1.260"
1BVBc12-130 1BVBd12-134 1.1/2 1.575"
1BVBc14-130 1BVBd14-135 2 1.968"

Brass Ball Valve 1BVBb01-130 1BVBe01-130 1/8 0.315"
1BVBb02-130 1BVBe02-130 1/4 0.315"
1BVBb03-130 1BVBe03-130 3/8 0.394"
1BVBb04-130 1BVBe04-130 1/2 0.590"
1BVBb06-130 1BVBe06-130 3/4 0.787"
1BVBb08-130 1BVBe08-130 1 0.984"
1BVBb10-130 1BVBe10-130 1.1/4 1.260"
1BVBb12-130 1BVBe12-130 1.1/2 1.575"
1BVBb14-130 1BVBe14-130 2 1.968"

Brass Ball Valve 1BVD002-130 / 1/4 0.315"
1BVD003-130 / 3/8 0.394
1BVD004-130 / 1/2 0.590"
1BVD006-130 / 3/4 0.787"
1BVD008-130 / 1 0.984"


How to Repair the Brass Ball Valves for Water?
BY CARBO
When the brass ball valve is leaking, you should first find out the cause of
the ball valve leaking internally and the specific location of the water
leak. If the cause of the ball valve leak and the location of the water leak
are different, the treatment method will be different, so we should repair
according to the actual situation of the brass ball valve for water.

If it is because the handle of the ball valve is not closed properly, the ball
valve cannot be closed tightly, and there is a water leakage problem, then the
handle of the ball valve needs to be removed, and then the handle is corrected
with pliers, and then the handle is installed back. Generally, water leakage
problem can be solved.

If it is because the valve core of the ball valve is rusted to death, the ball
valve cannot be closed tightly, and there is a water leakage problem, then it
is generally difficult to repair. You can only try to remove the ball valve,
and then drop some lubricating oil into the valve core position. To see if the
rust death problem can be solved. If the problem cannot be solved, then you can
only directly replace with a new ball valve fitting of the same specification
and model.

If the ball valve is damaged, it can only be replaced directly with a new ball
valve. Before replacing the pex pipe ball valve, you need to go to a hardware
store or buy brass ball valve with the same specifications and model as the old
ball valve online. If the owner will not replace the ball valve, it is best to
ask a professional to come to help replace it, so as to avoid problems.

Once the ball valve leaks, but the owner fails to repair or replace it in time,
the water leakage of the ball valve will become more and more serious. Over
time, it will affect the life of the owner and may also cause economic losses.
So be sure to repair the water leakage of the ball valve in time.

How to install a brass ball valve?



Ensure that the installation position of the ball valve and the pipeline are in
a coaxial position. The two flanges on the pipeline should be kept parallel.
Confirm that the pipeline can bear the weight of the push ball valve. If it is
found that the pipeline cannot bear the weight of the ball valve, provide
corresponding support for the pipeline before installation.

Confirm whether there are impurities, welding slag, etc. In the pipeline, and
the it must be purged clean.


Check the nameplate of the ball valve, and perform full-open and full-close
operations on the press ball valve several times to confirm that the valve
can work normally, and then check all the details of the valve thoroughly to
ensure that the valve is intact.

Remove the protective covers at both ends of the valve, check whether the valve
body is clean, and clean the inner cavity of the valve body. Since the sealing
surface of the ball valve with drain is spherical, even tiny debris may cause
damage to the sealing surface.

Matters Needing Attention When lnstalling the Ball Valve

Any section of the ball valve can be installed at the upstream end, and the
handle brass valve for water can be installed at any position of the
pipeline. If the ball valve of the actuator (such as gear box, electro-
pneumatic actuator) is configured, it must be installed vertically, and the
inlet and outlet of the valve are on horizontal location.

As a professional bronze valve supplier, we provide brass water heater drain
ball valve, 1.5 inch brass ball valve, push ball valve, etc. Want to know more,
contact us.
