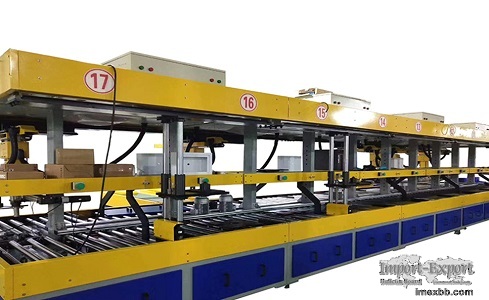

Brake Assembly Line

Independent research and development and manufacture of forklift brake assembly
line. The equipment adopts the leading two-stage bed plane conveying structure
design, which improves the utilization rate of the flow channel to 100% (the
upper and lower conveying methods of traditional equipment work in the upper
flow channel, and the lower flow channel can only be used for conveying follow-
up tooling), and the flow channel uses 2.5 Double differential chain heavy-duty
transmission, can assemble products weighing about 30kg. The overall equipment
occupies a small area, beautiful in appearance, and it is easier to realize
automatic and semi-automatic installation procedures.

HOW DOES BRAKE ASSEMBLY LINE WORK?
Reasonable distribution shall be adopted in combination with the brake assembly
process. Using the flow channel transmission, the automatic manipulator
completes the brake assembly process.

FEATURES OF BRAKE ASSEMBLY LINE
1
Laser marking, the laser marking machine can automatically engrave repeatedly
to ensure clear words. Automatic gluing, perfectly matched with four-axis
machinery, the equipment can be used stably for a long time.

2
Automatically screw the screw, can set the torque and the number of turns of
the screw.Automatic flip, the design of automatic flip station on the runner
subtly meets this demand.

3
Automatic oiling, four-axis robot + precision oiling parts, to achieve the
oiling requirements of various specifications. Automatic detection, four-axis
robot + laser sensor + program coding, 360 ° all-round detection of the brake.

ADVANTAGES OF BRAKE ASSEMBLY LINE
brake assembly line
FIRST
High utilization
The assembly line is divided into two sections, the head and the tail, and the
installation and disassembly are more convenient. the plane conveying
structure has a flow channel utilization rate of up to 100%.

brake assembly line
SECOND
Small size
The runner adopts 2.5 times differential chain heavy-duty transmission, which
can realize product assembly of about 30kg. The volume is about 40m³, and it
is easier to realize automatic and semi-automatic installation procedures.

As one of the most professional laser welding machine suppliers, we provide
automatic laser welder, stainless steel welding machine, crimping machine, etc.
For more, contact us.

Minimum Order: 1 sets
