BPS-K600 Continuous Casting Mold Breakout System

BPS-K600 Continuous Casting Mold Breakout System



Overview:

The BPS-K600 continuous casting mould breakout prediction system is
developed by Wuhan CenterRise M&C Measuring Co., Ltd. It adopts artificial
neural network and combines with traditional artificial intelligence and
information processing technology to overcome the defects of traditional
logic-based prediction models. It has the functions of self-adaptation,
self-organization and real-time learning.



The breakout prediction system has an optimized industrial network
structure. According to the distribution and change rules of the temperature
field of the mold, it can track and respond to the breakout process in real
time. It can learn and judge by itself, and provide early warning
information for on-site operations. It can effectively prevent the
occurrence of breakout accidents, greatly reducing the cost and improving
the safety factor of continuous casting.



The system is suitable for all kinds of continuous casting machines such as
square billet, round billet, rectangular billet and slab.

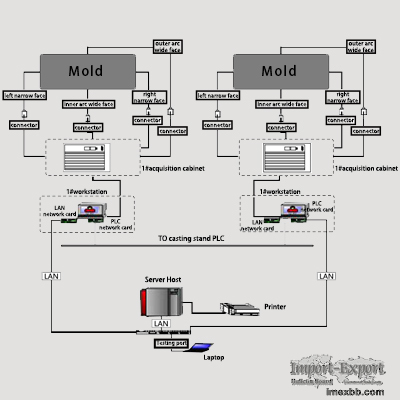

The composition of the system

Thermocouple: according to the on-site conditions of the mold, water tank,
bolts and mold frame to desgin

Front-end acquisition system: Multi-module acquisition chain, industrial
Ethernet interface, high-speed embedded processing module

Working platform: Real-time display of mold temperature field status, online
analysis and prediction of mold breakout

Server: Data exchange and storage management, reporting and printing system,
with data analysis and self-learning functions



The Main technical parameters



Data sampling: the sampling frequency of K-type/T-type
thermocouple can up to 10HZ

Accuracy of temperature measurement: ±0.25℃

Support communication protocol: Industrial Ethernet (TCP/IP)，
PROFIBUS-DP，CANopen

Executive standard: DE0411 Standard Class III/1EC584/IEC1515
Transmission speed: 100M/bps



The composition of the software

Online monitoring software for breakout prediction

Offline query software for breakout prediction

Data recovery and self-learning software packages

Data acquisition and monitoring software

The software package of mold thermal status display







The functions of the system

Real-time data acquisition, data analysis and judgment
Automatic selection of steel grade’s alarm parameters
Real-time dynamic picture monitoring
Prediction alarm and information display of breakout signs
Automatic deceleration after alarm
Historical data storage and historical trend graph display
Automatic report generation and printing
Alarm prediction and pattern recognition of unknown steel grades by neural
network
Dynamic real-time temperature profile prediction
Mould heat flow field display






The features of the system

1. Reasonable design of temperature measurement point and professional
protection front-end acquisition system, and complete installation and
calibration tool components.
2. The system has strong adaptability and can meet the transformation of
various structural continuous casting machines.
3. High-speed data communication, using industrial network to form an
independent local area network for each workstation and server. It can
realize high-speed data transmission of alarm files, alarm parameters, and
other databases.
4. The combination of artificial neural network and intelligent forecasting
model improves the accuracy of breakout forecasting.
5. Historical data storage and historical trend graph display, historical
reports, historical alarm legend printing, real-time alarm data printing.
6. Provide a local area network interface, which can realize the storage and
forwarding of alarm files, and the input and output of offline alarm data.
7. Remote Web browsing can be achieved according to customer needs.
8. Can be seamlessly connected with MES-C220 mould expert system.
