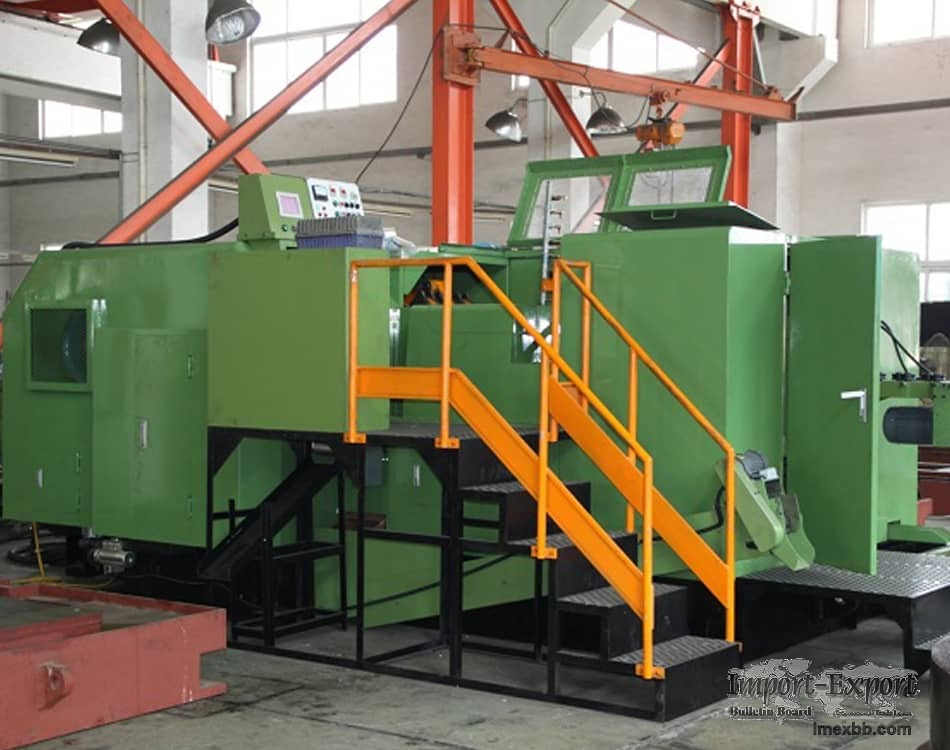

Bolt Making Machine

Aluminium Tower Bolt Making Machine
Metal tech Bolt Making Machine, adopting multi station cold heading forming
technology, mainly used in the production of bolts and some non-standard
accessories. Metal Tech is a professional bolt making machine manufacturers and
service provider of nut bolt making machine and screw bolt making machine,
While trying to maintain the quality of the bolt making machine for sale, we
continue to improve and reduce costs, and provide customers with high-quality
machines and better bolt maker machine price / bolt making machine price.

Specifications of Bolt Making Machine

SPECIFICATION/MODEL SJBF83S SJBF103S SJBF103SL SJBF133S
SJBF133SL SJBF163S SJBF163SL SJBF203S SJBF203SL
SJBF203SLL SJBF243S SJBF243SL SJBF243SLL SJBF273S
SJBF303S

FORGING STATION 3
CUT-OFF DIA.MAX. （mm) 10 12 15 18 23 29 34
38
CUT-OUT LENGTH MAX.（mm) 130 180 230 185 240 270
400 270 400 445 290 370 460 400 450
KICK-OUT LENGTH MAX.(mm) 120 175 225 180 225 230
335 230 335 370 235 340 410 340 390
P.K.O.LENGTH MAX. （mm) 23 30 36 30 35 36 60
35 60 70 35 60 60 60 70
CUT-OFF QUILL(D×L) (mm) 38×79 40×80 40×80 46×80 60×100 60×120
60×120 75×120 90×140 110×140 115×140
MAIN DIE HOLE (D×L) (mm) 70×135 80×135 80×240 93×190 93×240
100×240 100×360 125×240 125×360 125×420
160×250 160×370 160×450 178×385 195×420
DIES PITCH (mm) 138 174 195
210
PUNCH HOLE (D×L) (mm) 45×111 50×130 50×190 60×170 60×200 75×200
75×232 90×190 90×240 90×290 105×200 105×232 106×270
120×250 135×280
RAM STROKE(mm) 200 250 360 270 360 360 500 360
500 580 360 500 600 500 580
FORGING POWER (ton) 65 85 90 130 200 215
265 300 320 360 420 450 550 620
SIZE M8 M10 M12 M16 M20 M24 M27 M30
PRODUCTS MAX.LENGTH(mm) 100 150 200 150 200 200
300 200 305 360 200 300 380 300 355
MIN.LENGTH (mm) 20 30 50 40 50 50 100
40 100 100 60 100 100 100 100
MAX.OUTPUT(pcs/minute) 200 175 110 125 100 100 65
90 60 55 70 55 45-50 45 40-45
MAIN MOTOR (HP) 30 40 40 50 50 75 100
100 125 125 125 150 150 175 200
APPROX.WT.（ton) 14 20 24 25 30 45 56
65 75 82 90 125 142 135 155

What Machine Makes Nuts and Bolts?
U bolt making machine / bolt maker machine / automatic bolt making machine
/ tower bolt making machine and screw and bolt manufacturing machine are used
as an important means of producing different types of bolts, screws, rivets and
nuts in the field of fastener industry. The former are also widely used in the
economic territories of different countries for the production of fasteners and
unusual non-standard parts, such as aviation, ships, machinery, rail
transportation, automobiles, motorcycles, bicycles, sewing machines,
construction, furniture, light industrial goods, etc.

Advantages of Bolt Making Machine
Metal tech Bolt Making Machine uses high-quality material parts, strict quality
management all these guarantee superior quality and long performance Bolt
Making Machine life.

Advantages of Aluminium Tower Bolt Making Machine
Metal Tech's multi station tower bolt making machine and multi station nut
making machine can produce various types of standard and non-standard bolts,
nuts, screws and other parts according to the requirements of customers.

As one of wire drawing machine manufacturers,we also have types of mesh wire
making machine for sale, if you have needs, please contact us.
