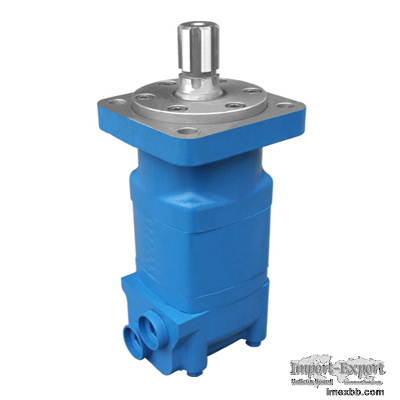

BM6 High Pressure Motor

What is BM6 High Pressure Hydraulic Motor?
BM6 hydraulic motor is a face-end flow, pressure-compensated motor, mainly
composed of output shaft, front cover, bearing, long linkage shaft, bearing
housing, stator and rotor pair, valve disc, small linkage shaft, distribution
plate and preloading spring. This hydraulic motor features low speed and high
torque. The motor has a six-toothed cycloidal rotor, which is installed in the
middle of the stator and meshes with the stators of the seven arc teeth to form
seven sealed spaces; 12 holes on the distribution plate, 6 of which are
combined with the oil. The mouth is connected, and the other six are connected
to the back (in) port. The seven holes auxiliary distribution plates on the
valve disc form a seven volume chamber with the cycloidal rotor.

Characteristic Features of BM6 High Pressure Motor:
BM6 is a large volume, disc valve, high pressure motor, with ball-bearings
design, and can bear big load, and has higher torque than BM5. Advanced design
in disc distribution flow, which can provide improved performance at low speed.
The valve can automatically compensate for the wear, so the volumetric
efficiency is high. Double taper roller bearings permit high radial loads. The
motors can be used on heavier vehicles in traction drive applications

Product Description

Quick Details
Type Hydraulic Motor Series BM6 hydraulic motor
Place of Origin China (Mainland) Brand Name Gulex
Displacement(ml/r) 195-985 Material Ductile Iron
max  torque(N*m) 575~1875N*m Surface treatment Spray
Painting
 pressure(MPa) 12~20.5 MPa Max cont Flow 150L/min
Speed(RPM) 153~775r/min Oil temperature -35℃~80℃


JC forging is a professional manufacturer of precision forging parts. We
provide disc valve hydraulic motor, hydraulic motor spool valve, hydraulic
cylinder components and etc. Want to know more? Please contact us.

Minimum Order: 1 sets
