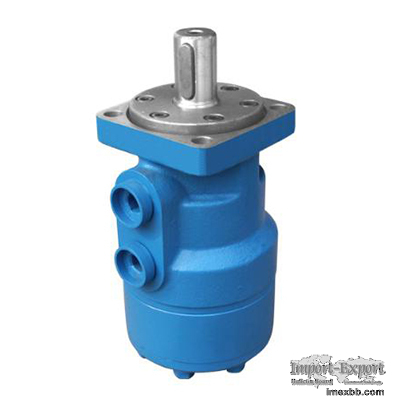

BM2 Hydraulic Spool Valve Motor

What is BM2 Hydraulic Spool Valve Motor?
BM2 motor is a spool valve type motor.

Characteristic Features of BM2 Hydraulic Spool Valve Motor:
1, lt adapt the gerolor design. Combination efficiency is better than BM1
motor.
2, Credible design for shaft seal, which can bear high pressure and be used in
parallel or in series.
3, Direction of shaft rotation and speed can be controlled easily and smoothly.
4, Best combination of efficiency and economy in medium duly application.

Product Description
Quick Details
Type: Hydraulic Motor Series BM2 hydraulic motor
Place of Origin China (Mainland) Brand Name Gulex
Displacement(ml/r) 50-500 Material Ductile Iron
max  torque(N*m) 100~580N*m Surface treatment Spray
Painting
 pressure(MPa) 8~17.5 MPa Max cont Flow 75L/min
Speed(RPM) 110~755r/min Oil tempreture -35℃~80℃

Operational Precautions of BM2 Hydraulic Spool Valve Motor:
(1) Check all components of the hydraulic system correctly before operation,
and add oil to the specified height through the filter.
(2) Start the operation for 10 to 15 minutes without load, and perform
exhausting, foam in the fuel tank, noise in the system, and stagnant motor
cylinders to prove that there is air in the system.
(3) After removing the air, fill up the fuel tank, and then gradually increase
the load to the motor until the maximum load, observe whether there are
abnormal phenomena, such as noise, oil rise and oil leakage.
(4) Replace the oil by running for 50 hours, and replace it according to the
maintenance rules.
(5) If it is not a motor failure, please do not disassemble it easily.

Specifications of BM2 Hydraulic Spool Valve Motor:

BM2 Hydraulic Motor Mounting Dimensions:

JC forging is a professional manufacturer of precision forging parts. We
provide motor spool valve, hydraulic motor spool valve, spool motor, hyd
cylinders for sale and etc. Want to know more? Please contact us.

Minimum Order: 1 sets
