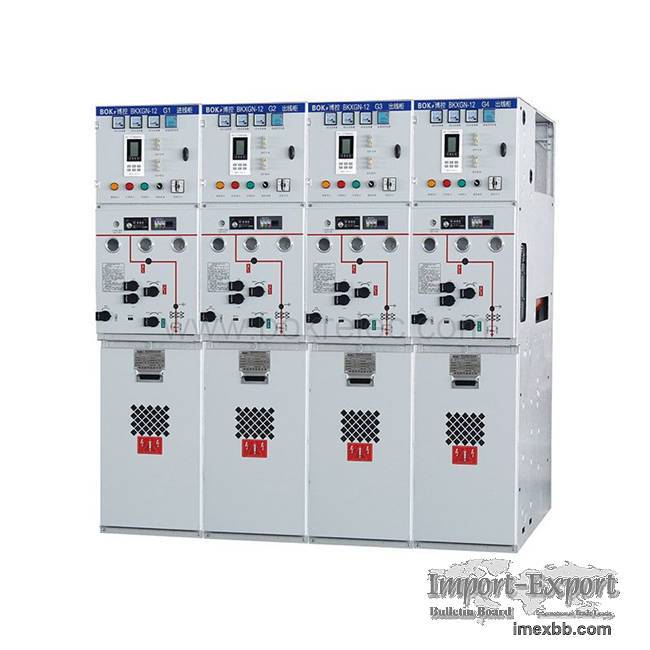

BKXGN-12 Solid Insulated Switchgear

BKXGN-12 Solid Insulated Switchgear
Product Description
BKXGN-12 Solid Insulated Switchgear is suitable for middle voltage power
distribution system with a rated voltage of less than 10kV and a rated current
under 1250A. It is more reliable than the SF6 ring main unit, and is more
suitable for a wider range of applications.
MV Switchgear Feature
• No SF6 gas inside, avoiding pressure tank designing.
• All live parts are sealed or embedded in the epoxy resin and silicon rubber,
fully insulated and wholly enclosed structure, safety protection level: IP67.
• All operating mechanism sealed inside a box, truly maintenance-free.
• Enhanced phase separation design, independent phase insulation to avoid the
fault between phases.
•Standard modular design to facilitate unit extension, modification and
replacement.
• Switch working position of each phase could be observed independently.
• Safe, smart, environment-friendly, flexible assembly enabled, good
performance to apply in special environments.
• Multiple mechanical interlock to achieve 'five-protection' function.
• Complete indoor & outdoor application solution.
Service environment
Coastal area: fully sealed structure of the mechanism, professional high salt
spray testing equipment to ensure long-term application in coastal areas.
Low temperature area: The solid insulated switchgear doesn't need SF6, so the
potential problem caused by insulation gas being liquified under low
temperature can be avoided.
Plateau area: Due to the absence of SF6, the problems caused by the big
pressure difference between the inside and outside of the gas tank in high
altitude areas can be avoided.
Explosion forbidden places: The switch adopts vacuum interrupter sealed with
epoxy resin bushing which can prevent the gas exposure and explosion.
Basement with workers: The density of SF6 is 5 times higher than air on the
same condition. So if the SF6 in a traditional RMU leaks out, it will
accumulate in low area, so the workers there could be harmed or suffocated.
Frequent switching operation situation: Switch operations for solid dielectric
designed RMU reaches 20,000 times.
Areas with high requirements for environmental protection: Our Bokong Electric
solid insulated switchgear doesn't contain SF6, which is a kind of greenhouse
gas.
