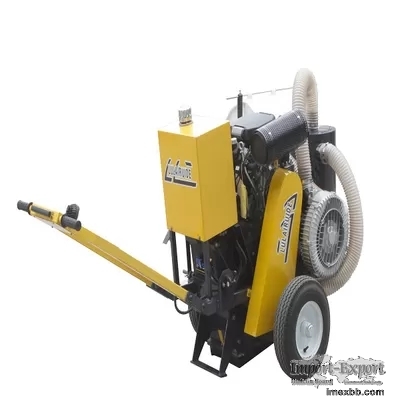

Bituminous Road Grooving Machine

PRODUCT DESCRIPTION
Grooving Machine Pavement Repair Filling Gasoline Powered Cement Pavement Reaming
Crack Widening Machine

Bituminous pavement slotting machine is used for bituminous pavement repair cracks
grooving machinery, it has the advantages of small size, flexible travel, reliable
work and high efficiency, is bituminous pavement repair before the slotting machine
for cracks.Its working principle is a powerful Honda and everlasting light gasoline
engine as power source, the triangle driven spindle at high speed, hand movements
handwheel bring down the main shaft, cutting, before walking wheel adopt universal
wheel, can make the engine work in carried out in accordance with the natural
fracture curve cutting, equipped with matching fan page can also be used as slot to
slot in the dust cleaning, after the realization of the aim of one machine.

1. Application process:

Crack Router do prepare works before sealing the cracks. Application process refer
to the crack sealing process.

Original cracks ----Route it to regular cracks----Clean or heated ----Pouring
sealant----Open traffic

No need to close the traffic, cracks can be finished in a short time.

2. Parameter:

1) Model: LLRD-K25C
2) Engine: Kohler Gasoline engine, double cylinder, air cooling
3) Engine Power: 25HP
4) Starting mode: electric starting
5) Fuel tank: 20L
6) Slotting width: 10-50mm (adjustable)
7) Slotting depth: 0-30mm (adjustable)
8) Blades: 6 pcs carbide blades
9) Crack tracking indicator: It can instruct you to cut out the groove of irregular
cracks
10) Emergency braking system: Equipped with emergency braking, braking can be
achieved within 7 seconds.
11) Fan capacity: 10m³/h
12) Diameter of dust collection hose: 100mm
13) Diameter of dust collection tank: 32cm
14) Volume of Dust collecting box: 10L
15) Diameter of dust collecting bag: 40cm
16) Length of dust collecting bag: 60cm

3. Features:

Special vacuum devices make it dust-free during grooving.
Gasoline Kohler engine, 25hp, air-cooled, with two cylinder. Triple air filter
maximizes the life span of engine.
Cutting depth adjustable: 0-35mm,cutting width adjustable:10-50 mm.
Special design of electromagnetic clutch make it more safety and economic
efficiency. And save the engine gasoline consumption.
V diamond blades can be optional
