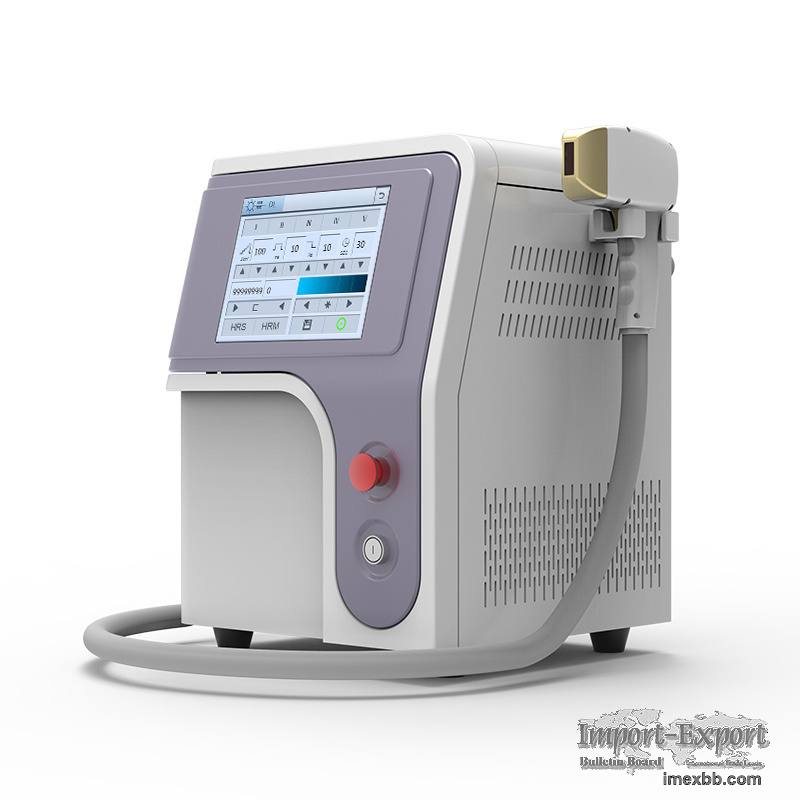

Big Spot 755nm 810nm 1064nm Diode Laser Hair Removal Device

Model：QM-808A

Big Spot 755nm 810nm 1064nm Diode Laser Hair Removal Device

2021 New Intelligent Diode Laser System!
808nm and Triple wavelengths(755nm+808nm+1064nm) for option!


Applications：

For any unwanted hairs on areas of face, arms, armpits, chest, back, bikini,
legs and etc.
(including light, blond and thin hairs)

Working Principle:
Diode laser hair removal technology is based on the selective dynamics of light
and heat. The laser goes through the skin surface to reach the root of hair
follicles; light can be absorbed and converted into heat damaged hair follicle
tissue, so that hair loss regeneration without injury surrounding tissue.
Slight pain, easy operation, the most safe, technology for permanent hair
removal now.
It is performed using gold standard Triple-wavelength 755nm,808nm,1064nm diode
laser technology, with energy penetrates deep into the dermis with high average
power and a rapid 10 pulse-per-second repetition rate to heat the hair shaft
and hair follicle, rather than destroy the oxygen organization around hair
follicle.
Meanwhile, contacting surface cooling technology applied on the Sapphire tip
can eliminate the heat effect attributed to optical energy, greatly improving
both the treatment performance and safety.





Specialty of QM-808A:
** New portable and smart design


** German Laser Emitter achieve fantastic result and last long lifetime!


** Different spot size handles for your option:


** Handpiece Specification:




Technical Specifications:

Laser Type Diode Laser
Laser Stacks Power 600W
Wavelength (Spectrum) Triple-wavelength-755nm+808nm+1064nm
Energy Density (Fluence) 1-100J/cm² (Continuously adjustable)
Spot Size 12*20mm² (standard),12*35mm² (for option)
Pulse Repetition Rate 1-10Hz
Pulse Duration 10-300ms
Pulses Single

Cooling • Continuous Sapphire contact cooling(-5℃~1℃)
• Air cooling
• Closed water circulation cooling
Stand-by Working Continuously for 20 hours
Display 10.4" True Color LCD Touch Screen
Electrical Requirements 110/230VAC, 15/20A max., 50/60Hz
Net Weight 40kgs
Dimensions (WxDxH) 450*550*580 mm

Minimum Order: 1 sets
