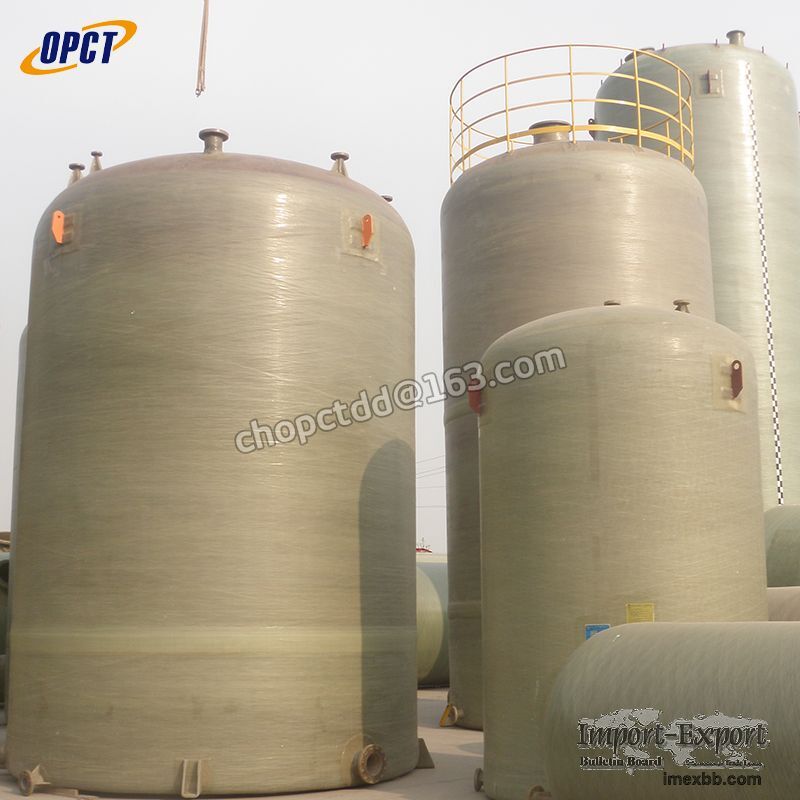

Big size FRP GRP Chemical storage tank

FRP chemical storage tank (also known as FRP chemical storage vessel), is
manufactured by filament winding process and designed to store high corrosive
chemicals like acids, alkalis, alcohols, mineral oils and esters. It can used
at high temperature, under high pressure and performs well in preventing
seepage, leakage and overflowing.
We offer FRP storage tanks in various dimensions and colors to meet your
requirements. In addition, FRP chemical storage tanks can also be offered with
suitable agitators, ladder, gear box, electric motor and other accessories.
FRP chemical storage tank can prevent seepage, leakage and overflowing
No. Volume
(m3) Size(mm)
DN*Height Medium Weight
(kg) Temperature
(℃)
1 10 Φ2000*3700 Dilute sulfuric acid 750.7 0-60
2 20 Φ2500*4700 Dilute nitric acid 1036.4 0-60
3 30 Φ3000*5000 Sodium silicate 1644.8 0-60
4 45 Φ3500*5200 Ammonium sulfate 2380.9 0-60
5 60 Φ3800*5600 Hydrochloric acid 3117 0-60
6 70 Φ4000*6500 Caustic soda 3725.6 0-60
7 100 Φ4000*8500 Sulfuric acid 5197.2 0-60
8 230 Φ5500*9280 Hot hydrochloric acid 12473.3 0-80
9 500 Φ9000*10512 Hydrochloric acid 24905 0-60

Click to Enlarge
