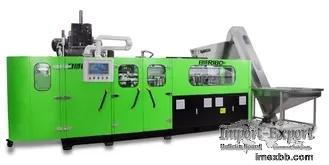

Big Bottle Pet Stretch Blow Molding Machine For Mineral Water

Product Description
Big Bottle PET blow Moulding Machine For Mineral Water/Edible Oil Bottle

Performance and Characteristics of PET blow moulding machine

1．The built-in continuous rotating infeed system effectively reduces the space
occupied. The consistency of preform position streamlines the process.

2. 63mm pitched, more preforms are uninterruptedly heated within the same distance,
which improves the efficiency and energy saving.

3. The thermostatic heating system ensure that the heating temperature of each
preform surface and internal is uniform. Hinged oven holders make it easy
for the operators to change infrared tubes and do maintenance.

4. The perform transfer system with grippers and the variable pitch system are both
driven by the servo motors to ensure high speed and accurate preform
handling between the two mechanism.

5. The Servo driven the molding mechanism, triggering off the linkage to the bottom
mold. The application of high speed precision blowing valve unit helps
to make high capacity.

6. The cooling system for the preform neck is equipped to ensure the preform neck
does not deform during heating and blowing.

7. High pressure blowing air recovery system saves up to 30% of HPC air.

8. Being highly intelligent, the machine is equipped with the units of preform
temperature detection, leaking bottle detection and rejection as well as
jammed air conveyor detection, ect, which ensures the machine work efficiently and
stably.

9. Operation on the touch screen is simple and easy.

10.This series is widely used for making PET bottle for drinking water, edible oil,
food, daily chemical……ect.

Technical Parameter

Items Unit Model
RiBo-6CR5L
Molding Spec. Preform Pitch mm 190
Preform Heating Pitch mm 63.5
No.of Cav. cav. 6
Container Spec. Max.Container Volume L 5
Neck Diameter Range mm 39~45
Support ring diameter mm 57
Max.Containr Diameter 　 180
Max.Containr Height mm 330
※※Theoretical Output bph 6600~6000
Power Spec. Rated Power KW 180
Power Consumption KW 80~90
Compressor Spec. Blowing Pressure Mpa 2.8~3.5
Air Consuming m³/min 16
Main Machine Spec. Size mm 11800*3750*3300
Weight Kg 11500
*Due to continuous technical development specification would be improved without
prior notice.
*Special designs correspond to customers needs.
