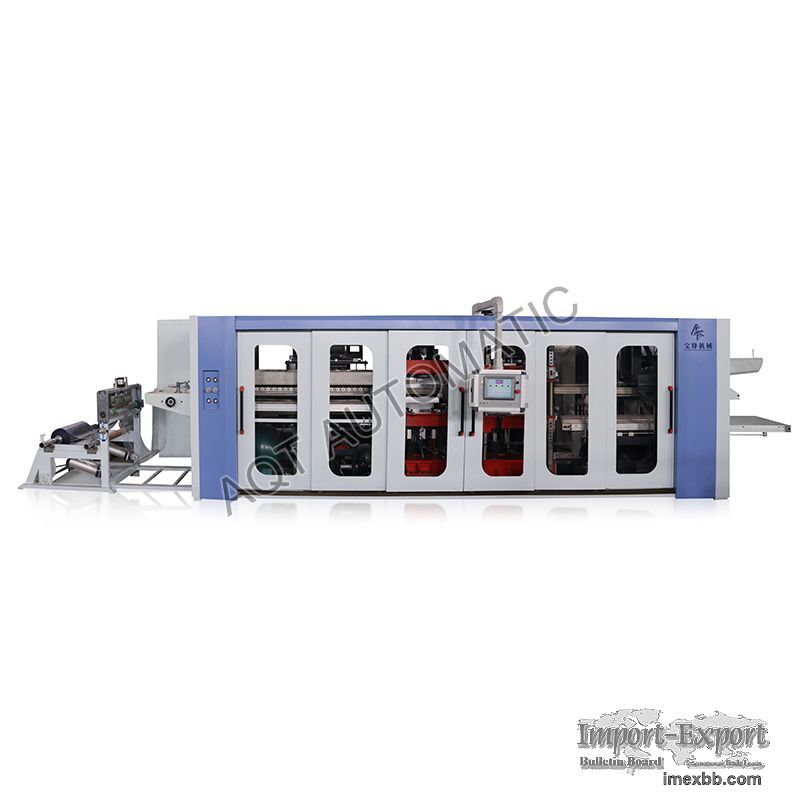

BHP72 high speed full-automatic vacuum forming machine

BHP72 high speed full-automatic vacuum forming machine
Product Description
AQT high speed vacuum forming machine is used for thermoforming plastic sheet
into all kinds of Blister products, involving electronic, hardware, medicine,
toys, technology and other blister packaging automatic integrated molding
machine Applicable sheet PP PS PLA PETG PET PVC etc.
High Speed Vacuum Forming Machine Features
1. Thermoforming machine, oil pressure and start are integrated, the whole
process is controlled by PLC program, and the touch screen operation is simple
and convenient. From sheet to product, forming, cutting, stacking into
products. It is an automatic for whole process.
2. Our Vacuum forming machine can loading and unloading of mold forming
rapidly. cutting mold pushing to the mold table. automatic clamping by
mechanical gripper, without fine adjustment, sate and efficient the whole set
of mold loading and unicading only takes five minutes.
3. The process of simple and efficient cutting station is to use oil pressure
system to cut products. Compared with the debugging dimiculty af servo cutting,
the strength is not well controlled, and the cutting tool is worn, etc.. the
hydraulic cutting system can adjust the products only by adjusting the cutting
strength and holding time. which is simple and efficient for the vacuum forming
machine.
4. The thermoforming packing machine vacuum forming machine, the temperature
control system of electric furnace is up. down and three-stage heating. it
adopts the full computer intelligent automatic compenation control. the zone is
one emply one independent control. the fine-tuning accuracy is high and the
heating speed is 0-300 degrees. only 3 mingtes The temperatgre is stable, not
affected by external voitage. and the temperature fluctuation is not more than
1 degree. The utity model has the advantages of low energy consumption, long
service life, etc.
