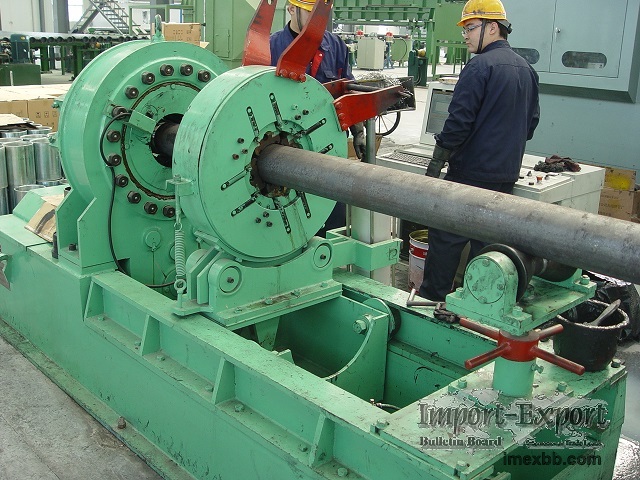

BHJG230 Bucking Machine

BHJG230 torque machine has six parts: driving clamp system、backup clamp
system、hydraulic system、pneumatic system、manipulating platform and frame
base.

Color: White Green
Material: Carbon Steel
Standard: API
Industries: Energy & Mining Machinery
Application: Casing Tubing Petroleum
PRODUCT DESCRIPTION

BHJG230 torque machine has six parts: driving clamp system、backup clamp
system、hydraulic system、pneumatic system、manipulating platform and frame
base.

The Driving clamp is driven by hydraulic motor and it is used to screw on and
tighten (screw off) the coupling. The Buckup clamp is driven by pneumatic
cylinder and it is used to fix the pipe. the screw on torque value is output by
tension sensor and controlled by PLC system.

This machine can finish the work of 2″-7″diameter casing and tubing, the jaw
plate includes: 2 3/8″— 2 7/8″— 3 1/2″— 41/2″—51/2″—7", other sizes
need to buy.



PRODUCT APPLICATION

BHJG230 torque machine produced by our company is special equipment used to
screw on and off the coupling and pipe(tubing & casing).



FEATURES

1. BHJG230 torque machine is driven and controlled by hydraulic and pneumatic
system, the system is easy and convenient to operate.

2. The system is controlled by hydromantic except for the driving clamp which
driven by hydraulic motor, it can greatly reduce the oil leakage.

3. The Driving clamp uses closed structure, it is driven by hydraulic motor,
the clamp head has 3 jaw plates with 120º distributing, every jaw plate has 2-
3tooth, totally 6-9 tooth contacting the coupling surface, the teeth marks are
according to API standard, the clamp head can reset automatically.

4. Back up clamp is similar to the driving clamp, but it is driven by the
pneumatic cylinder .The driving clamp and backup clamp can regulate their
center in one line automatically to meet the requirements of using.

5. It is easy to replace the dies

6. The backup clamp is equipped with tension sensor used to measure torque (the
unit is KN.m). The control system will contrast the torque value and screw
circles with the setting value, control the machine operating automatically.

7. Double pumps oil supply, adjust speed automatically, high speed screw, low
speed torque, to meet the demand of special threads.
Please feel free to contact us if you need.
Model BHJG230
Bore diameter 230mm
The applicable steel grade H40, J55, K55, N80, L80, C90, C95, P110 and
Q125.
Application 2″-7″
Applicable connections API (round / buttress) threads or special thread(TS3SB,
VAM, BDS, SEC, AB, ANTARES, T Blue, etc)
Variable speed range Take double-pump as power, and the speed is stepless
changed manually.The rotate speed of driving clamp:0.7-24r/min.
Max.screwing torque:30KN.M(when pressure is 16Mpa ).
Hydraulic system Max.pressure 16MPa
Flow rate 10-180L/min
Pneumatic control system Working pressure 0.4-0.8Mpa
Height of center 1100mm
Stroke of the moving cylinder 300mm
Dimensions Main machine 3000mm×1350mm×1650mm
Hydraulic unit 2200mm×2050mm×1400mm
Control cabinet 1000mm×660mm×1020mm


OUR SERVICES

1. Best quality

2. Fast delivery

3. Professional technical support

4. We have been 15 years of experience in export sales.

5. We are machine reputable manufacturer, and also have after sales service.
