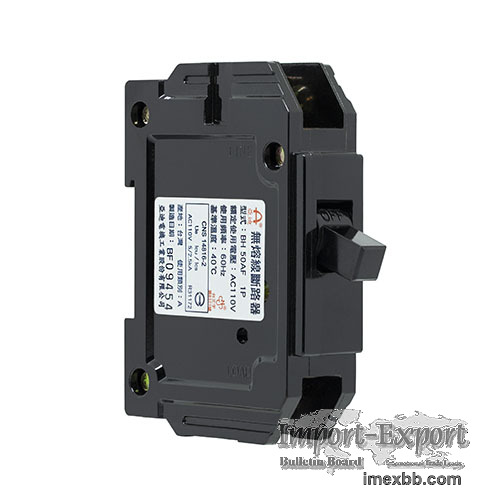

BH Type Circuit Breaker for Wiring

No-Fuse Circuit Breaker

The BH General Type offers a versatile range of options to meet various
electrical needs. With a frame capacity of AF, it provides flexibility in
terms of poles and rated voltage. The BH, HBH, SBH, and RBH types cater to
different requirements, ensuring compatibility with diverse applications.

When it comes to poles, the BH General Type offers options for 1, 2, or 3
poles, allowing users to choose the appropriate configuration for their
specific needs. The rated voltage of the BH General Type is available in
VAC, with options such as 110V, 220V,enabling compatibility with different
power systems.

For rated current, the BH General Type offers a range of choices to
accommodate various load requirements. With options like 15/20A, 30/40/50A,
and 50/60/75/100A, users can select the appropriate current rating based on
their specific application demands.

The BH General Type also prioritizes safety with its rated breaking
capacity. With values like 5/2.5kA, 10/5kA, and 25/13kA for different
voltage levels, it ensures reliable performance and protection in case of
overloads or faults.

In terms of dimensions, the BH General Type is designed with specific
measurements. The dimensions vary, with values such as 25mm, 50mm, and 75mm
for different parameters like a, b, c, and d. These dimensions ensure
proper fit and compatibility within electrical systems.
