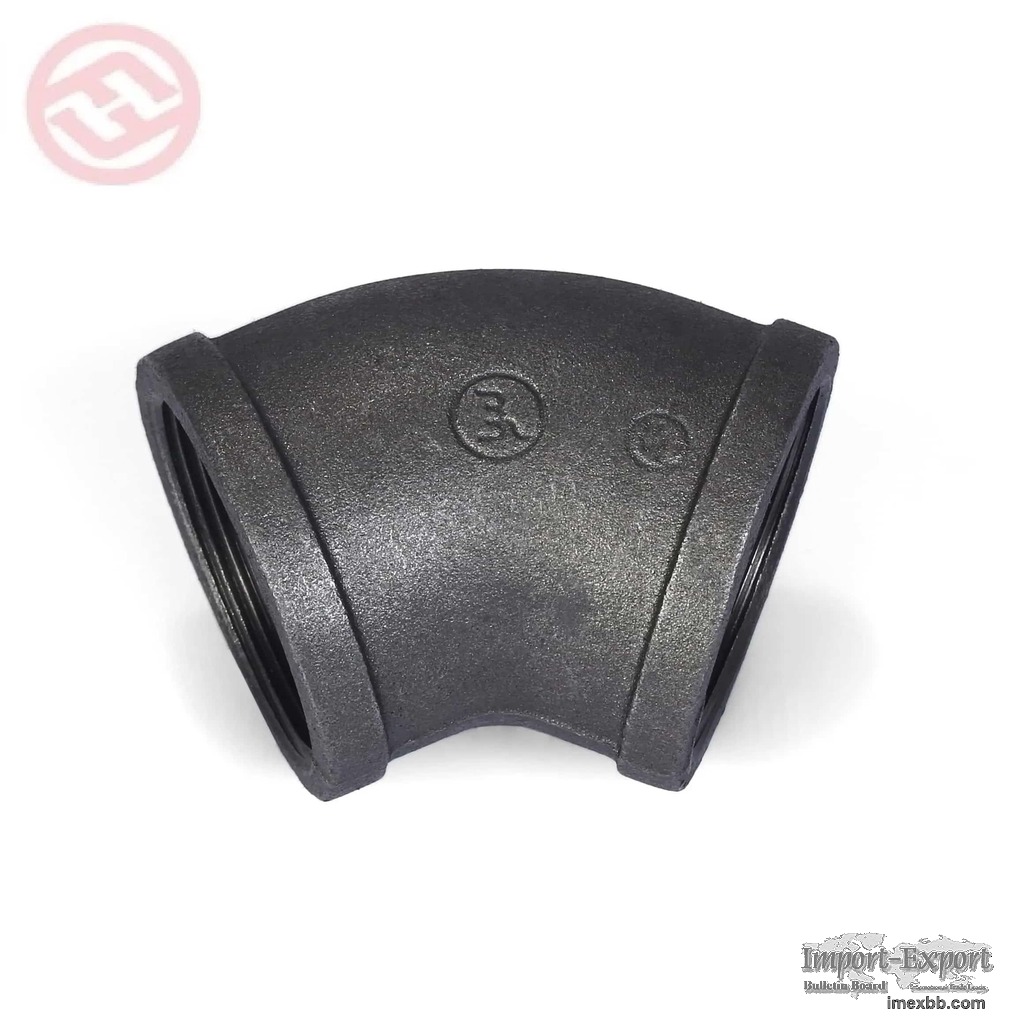

Best Malleable Iron 120 Elbow 45° BSPT Thread For Sale

Code：120
Size: 1/4”-6”
Material: BS EN 1562,EN-GJMB-350-10,KTH350-10
Dimension: BS EN 10242
Thread: ISO 7-1,BS 21,BSPT
Pressure Rating: PN16/PN25
Surface Treatment: Hot-dip Galvanized，Electro Galvanized，Black
Certificate: UL Listed / FM Approved / NSF 61
Application: Fire Protection, Waterworks, HVAC, Plumbing, GAS, Irrigation, or
other piping systems



Products Details
The Malleable Iron Elbow is a kind of pipe fitting made of malleable iron, usually
used for pipeline directional changes and pressure losses. The angle of the
Malleable Iron Elbow can be 45 degrees, 90 degrees, 180 degrees and other angles
according to the specific pipeline layout and use requirements. Fluid tech can do
any angles as the customer’s requirements. And the surface can be black, hot-dip
galvanized and electrical galvanized. The black one is used for fire-fighting
system and it will be painted with red color. And the galvanized one is mainly
used for water system.

The advantage of galvanized one
Galvanized malleable iron fittings have the following advantages compared to
ordinary iron fittings:
1. Corrosion resistance: Galvanized iron fittings have a zinc coating that
protects the fitting from rusting or corroding, and also provides a sacrificial
layer between the fitting and the environment, further protecting the fitting from
rust or corrosion damage.
2. Longevity: Galvanized iron fittings’ resistance to rust and corrosion allows
them to have a longer service life than ordinary iron fittings, particularly in
outdoor applications or damp environments.
3. Easy to maintain: Galvanized iron fittings do not require painting or other
surface finishes to protect them from rust or corrosion, making them easy to
maintain over time.
4. High strength: Galvanized iron fittings can be made stronger than ordinary iron
fittings, allowing them to be used in high-stress applications.
5. Easy installation: Galvanized iron fittings are easy to install and maintain,
and they can also be used with various types of pipes, which can effectively
reduce installation and maintenance costs.

Application and Case
Products are used in fire protection system, water system, HVAC system, plumbing,
gas system, irrigation system, etc. These products are used in many projects ,
such as Beijing Airport, Shanghai World Trade Center, Canton Tower and other
famous landmark projects.

Minimum Order: 1 tons
