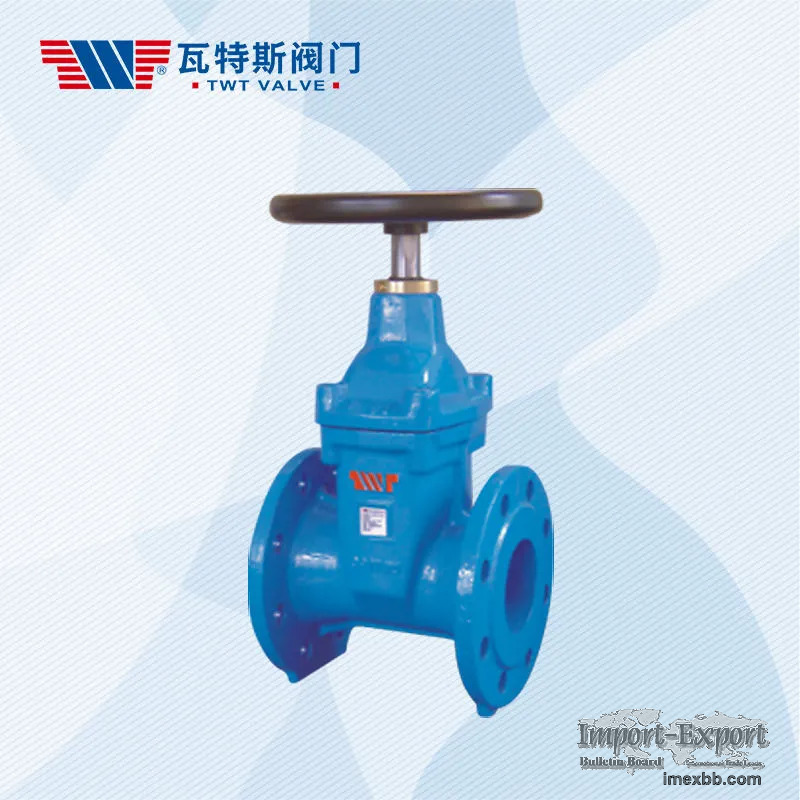

Best Elastic Seat Sealing Rod Gate Valve Manufacturer

Product Description
The Z45X series elastic sealing rod gate valve can be operated in both manual and
automatic modes, depending on the user’s needs and application scenarios.
• DIN3202f4 gate valves are usually equipped with a handwheel or handle that
is manually rotated to open or close the valve.
• The automatically operated Z45X series valves are usually equipped with
electric actuators or pneumatic actuators, which are driven by electricity or
pneumatic pressure to achieve remote control and automated operation.

Technical Standard
The products are manufactured in the China industrial valves manufacturer with
GB/T24924-2010/ANSI/AWWA C509-94 or BS 5163 standards.
The test conforms to GB/T13927 or BS 5163 standards.
The side flange connection conforms to the provisions of GB/17241.6, PN1.6MPa or
EN 1092 in the standard “PN1.0MPa”.
Valve length of the structure in line with the GB/T12221 standard gate valve
structure length short series, and at the same time in line with the ANSI B16.10
“valve structure length” in the 125 pound class standard, or BS 5163 standards.
DN65 (2 / “)” ~ (12) “side flange connection dimensions can be in accordance
with ANSI/ASME B16.1” cast iron pipe flanges and flanged fittings “in the 125
pound class standard requirements.

Features and advantages
Casting body, with sufficient strength to meet the requirements of the working
environment, fluid flow will not be hindered.
Elastic wedge, can automatically adapt to the pipe stress caused by the
deformation of the valve body.
The welded seat ring is sealed to prevent leakage.
Stem: T – disc – stem connection to prevent stress applied to the side of the
stem to ensure smooth operation.
Packing: packing containing preservatives, avoid rust stem. Deep stuffing box
ensures long service life of packing.
Seat ring: the bs5163 gate valve pn16 seat is sealed and welded, which can
eliminate the leakage channel and prolong the service life.

Minimum Order: 10 pieces
