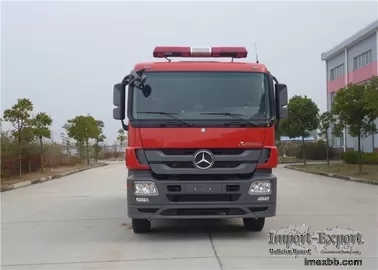

Benz Chassis Max Power 265KW Commercial Fire Trucks with 6500kg Water Tank

Benz Chassis Max Power 265KW Commercial Fire Trucks with 6500kg Water Tank 2 Seats

Vehicle

Dimension (L×W×H) 9720×2500×3700mm
Gross weight 28000kg
Complete vehicle shipping mass 15350kg
Seat (inc. driver) 2
Max. power 265kw

Chassis

Manufacturer Daimler
Model Actros3336
Drive type 6x4
Cab Manual operation hydraulic forward turnover
Wheelbase 4500+1350mm
Max. total mass 18000kg
Max. speed 95km/h
Min. turning diameter <21m
Approach angle 17°
Departure angle 13°

Liquid tank

Capacity Water: 6500kg Foam: 6000kg
Material 304 high quality corrosion resistant plate
Structure Total side girder
Pressure 1.0MPa
Device
2 manhole

1 overflow device

2 liquid level sensor

2 DN50 drain outlet with valve

4 filling pipe end

Conform to rule GA39.4-92

Pipeline

Outlet pipeline
2×DN80 ordinary pressure outlet

1×DN50 ball valve

Suction inlet
1×DN150 suction coupling

1×DN150 pneumatic butterfly valve

Monitor pipeline
1×DN125 monitor pipeline

1×DN125 butterfly valve

Residual water outlet Water cock
Pump drive system NMV200
Drive shaft High balance precision

Fire monitor

Model POK, PLC6000
Position Rear roof
Flow 80L/s
Pressure 1.0MPa
Range water≥75m ,foam≥70m
Rotation angle
Level ≥270°

Max. elevation angle ≥+45°

Max. depression angle ≥-7°

Pedal plate

Location: At the bottom of roller shutter door.

Material: Steel frame covered by aluminum alloy checkered plate.

Structure: adopt the gas springs plus shutter fasten, safe and reliable, each petal
plate bearing ≥150Kg.

Benz Chassis Max Power 265KW Commercial Fire Trucks with 6500kg Water Tank 0

FAQ:

1. Q:Are you a factory or a trade company?

A: Shanghai Jindun Special Vehicle equipment Co., LTD is one of the biggest
factories for special vehicles in China.

2. Q:Where is your factory located?

A:We are located in Shanghai Province,China.

3. Q:What's your payment method?

A: T/T and L/C are preferred.

4.Q:Do you arrange shipment for the vehicles?

A:Yes, we can arrange shippment based on trade terms.

5. Q: How is the packing?

A:All the packing comply with exporting standard.

Any other questions, please do not hesitate to contact with us.
