Belleville Disc Springs

Belleville Disc Springs also was called "Disc Springs" "Conical Disc
Springs", include disc spring stacks, Corrosion Resistant Disc Springs, High
Temperature / Cryogenic Disc Springs, Disc Springs for Ball Bearing, Disc
Springs for Valves. Disc Springs are widely used in petrochemical, electric
power, metallurgy, engineering, machine tools, national defense, and other
industries.
Bearing Preload Disc Springs manufacturer Description
The Disc Spring concept was first invented by a Frenchman Louis Belleville
in 1865. So, disc spring is commonly known as Belleville Springs. And
sometimes it also was called "Conical disc springs" "Belleville Disc
Springs" or "Belleville Washers".

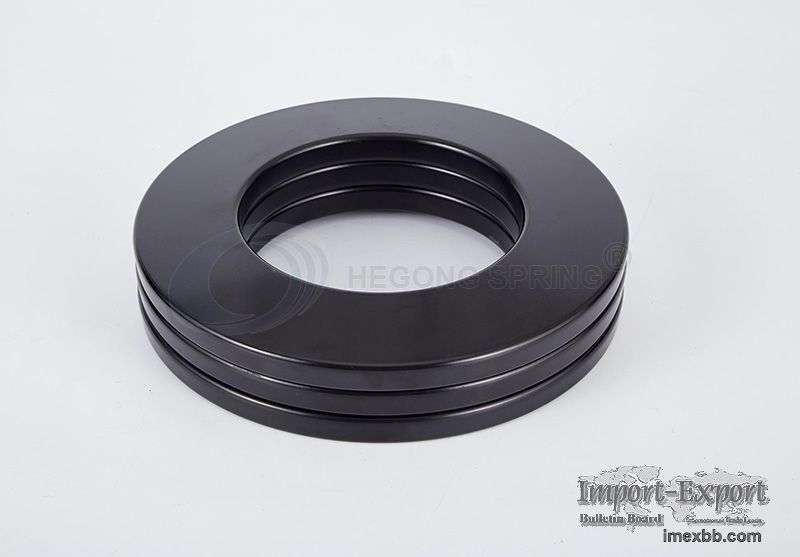

Hegong Disc Springs are conically washers and have a rectangular cross-
section, which is loaded in the axial direction. It has a small volume and
large energy storage compared to traditional helical springs and can be used
as a single disc spring or in the stack (stack in parallel, in series or
parallel & series combination).
The standards for disc springs mainly include DIN2092 (Calculation) /
DIN2093 ( Quality Specifications-Dimensions ) of Germany, JIS B 2706- Japan,
GB/T 1972-2005 of China and ISO 19690 : 2017 ( HEGONG SPRING ® is the
drafting team member for international standard ISO 19690 : 2017 and Chinese
national standard GB/T 1972-2005 ). Among them, DIN2093 is most widely used
in the world.
belleville washer design are designed & manufactured according to DIN2092 &
DIN2093, working for dynamic or static applications. The engineers of HEGONG
SPRING® are pleased to design the springs for the specific applications
together with the customer’s R&D department. Be free to contact with our
engineers. Tech@DiscSpringsMFG.com.
Genera , lly, disc springs include disc spring stacks, Corrosion Resistant Disc
Springs, High Temperature / Cryogenic Disc Springs, Disc Springs for Ball
Bearing, Disc Springs for Valves.
Surface Condition And Corrosion Protection:
Polish
Phosphating and oil
Mechanical Zinc Plating
Chemical Nickel Plating
Docromet / Geomet Coating
Electrophoresis
Tolerance:
The Tolerance is according to DIN2093 standards
Belleville Spring Washers exporter Specification:
The following specification table covers the "standard" sizes and some non-
standard sizes. HEGONG SPRING ® customizes Belleville Disc Springs as well.
The max OD is up to 1000mm. If you require the custom Belleville Disc
Springs, please contact our sales engineers.
