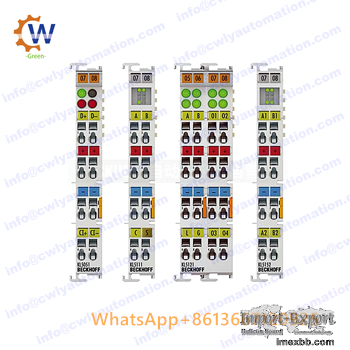

Beckhoff module KL5121-0010 Bus Terminal

Beckhoff module KL5121-0010 Bus Terminal

The KL5121 Bus Terminal can be used to implement a linear path control. The
terminal reads an incremental signal, which can be supplied by an incremental
encoder or a pulse generator, and switches the outputs when the counter reaches a
previously defined state. The counter states can be transmitted to the terminal by
the higher-level automation device in the form of a table. The position is
acquired with the aid of the latch input, which is activated/deactivated by the
gate input. Up to four 24 V outputs can be switched. The LEDs indicate the states
of the signals at the various inputs and outputs.

Description
KL5121
BUS TERMINAL
1-CHANNEL
4 X DIGITAL OUTPUT
INCREMENTAL ENCODER INTERFACE WITH PROGRAMMABLE OUTPUTS
24 VDC
0.5 AMP
250 KHZ
LINEAR PATH CONTROL
FACTORY WARRANTY MAY NOT APPLY. RADWELL 2-YEAR WARRANTY INCLUDED

Specifications
Part # KL5121
Category PLCs/Machine Control
Subcategory PLC Module/Rack

Technology incremental encoder interface with programmable outputs
Number of channels 1 incremental encoder + 4 outputs
Encoder connection A, B, latch, gate
Encoder operating voltage 24 V DC
Counter 16 bit, binary
Limit frequency 1 million increments/s (with 4-fold evaluation)
Output voltage 24 V
Output current 0.5 A
Switching times < 100 µs
Power supply 24 V DC (-15%/+20%)
Current consumption power contacts typ. 30 mA + load
Current consumption K-bus typ. 60 mA
Bit width in the process image input/output: 2 x 16 bit data, 2 x 8 bit
control/status
Special features electronic camshaft controller
Weight approx. 60 g
Operating/storage temperature 0…+55°C/-25…+85°C
Relative humidity 95%, no condensation
Vibration/shock resistance conforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emission conforms to EN 61000-6-2/EN 61000-6-4
Protect. rating/installation pos. IP20/variable
Pluggable wiring for all KSxxxx Bus Terminals
Approvals/markings CE, UL, ATEX, IECEx
Ex marking ATEX:
II 3 G Ex ec IIC T4 Gc
IECEx:
Ex ec IIC T4 Gc
