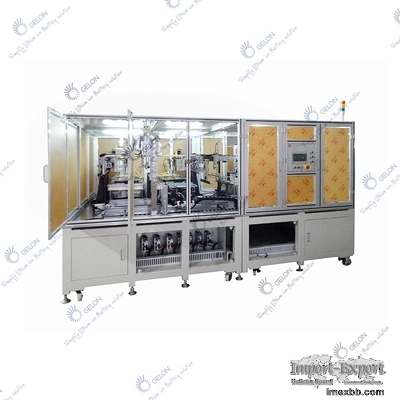

Battery Automatic Stacking Machine For Pouch Cell Production Machine

Pouch Cell Production Machine Customized Battery Automatic Stacking Machine



This device uses the manipulator left and right to move, in the two poles
limit to pick up the electrode material, in the middle position alternately
put the materials to stack,and simultaneously completes the Z-shaped folding
of separator during the left and right movement. So back and forth to finish
the entire core’s stacking and assembling. The manipulator adopts linear
servo motion module achieving high speed, smooth and accuracy.Separator put
materials with constant tension, and in the process of putting materials,
there is a correction mechanism to control the neatly consistent discharge.
The electrode silo adopts linear servo motion module to convert different
electrode sheets.



Cell Szie Thickness H(mm) 8-20
Cell Szie Width W(mm) 200-280
Cell Szie Length L(mm) 200-280
Tab length Q(mm) Q ≤ 30
Reference Shape Size 2500×2100×1900 mm ( L×W×H )
Reference Weight 1 600Kg
Power source AC220V single phase ； voltage pulsation±10% ；


Battery Automatic Stacking Machine For Pouch Cell Production Machine 0

Battery Automatic Stacking Machine For Pouch Cell Production Machine 1

Battery Automatic Stacking Machine For Pouch Cell Production Machine 2

1 . Electrode displacement Precision servo motor control ensures accurate
positioning of stacking.

2. Electrode bending double-chip device for polar bending can avoid multi-
sucking and strip images at a time

3. Electrode secondary re-preposition. The alignment device ensures accurate
positioning of the pole

4. The separator rectifying device can ensure the accurate alignment of the
separator

5. Material Box automatic air blowing device allow the pole to drift away
automatically ensures that the pole does not absorb much.

6. Secondary counter-position blowing dust removal device make sure the
laminated stacking electrodes are free of dust

7. Positive and negative electrode lifter guarantee the positive and
negative electrodes are always at the same height;

8. The separator unwinding has the function of constant tension, which
ensures that the separator tension is basically constant when stacking.

9. The separator is cut off automatically;

10. No tail coil;

11. Battery core automatic taping.
