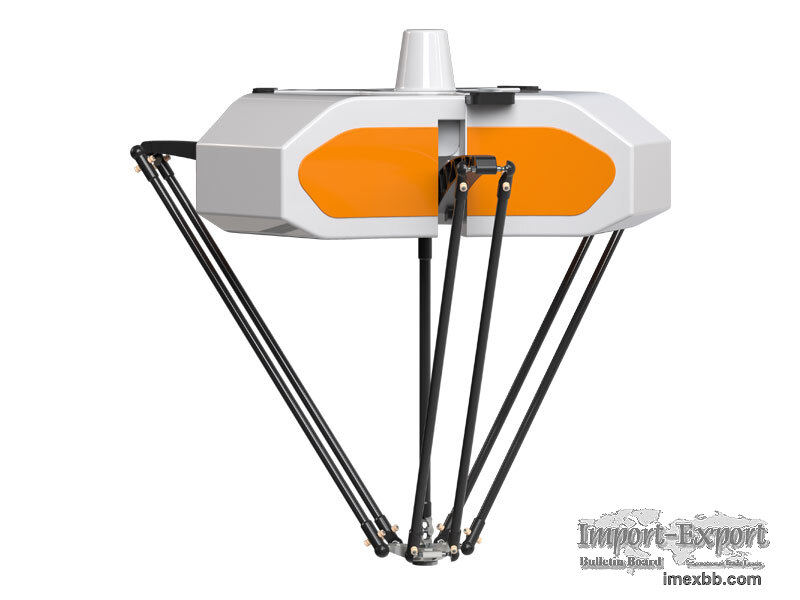

BAT1600-S6 Delta Robot

Bat1600-S6 parallel delta robot is a 4-axis parallel robot with a rated payload
of 6kg, which has the characteristics of high speed and precision, small
footprint and strong rated power. It contributes to a flexible production
during high precision and high speed manufacturing lines.

Specification of BAT1600-S6 Delta Robot
Robot Model BAT1600-S6
Rated Load 6kg
Working Space Diameter 1600mm
Number of Axles 4
Repeated Positioning Accuracy 0.1mm
Repeated Positioning Accuracy of four Axis Angle (°) 0.2°
Maximum Speed 10m/s
Power Supply Voltage AC380V±10％, 50/60HZ
Rated Power 4.7kW
Protection Grade IP54
Weight 190kg

As an industrial robot factory, we will do our best to meet all the needs of
customers.

The lightweight high-speed industrial robots developed by Robotphoenix, are
industrial robots possessing high-speed characteristics, which depend no more
on high precision reducers. It is a domestic high-speed light-load cooperative
operating system, integrating with core automation and robotics technologies
like vision module, control system and multi-machine cooperation. This system
developed by Robotphoenix achieve the world's first high-speed light-load
cooperative operating system, which indicates the robotic automation technology
is at the international leading level.

Now the industrial robot price is reasonable, if you have needs, please contact
us.

Minimum Order: 1 sets
