Barrier Terminal blocks MX25H-7.62

Test standard UL1059
Pitch 7.62
UL1059Test data UL File Number E228872
Poles 2-24P
Use group B C D
Rated voltage 300 / 300
Rated current 15 / 10
Rated connection capacit(solidstranded) [AWG] 22-14
Rated torque 4.43
General data /
Screw M3
Nflammability class UL94 V-0
Ambient temperature -40~+105
Relative humidit 5%-95%
Nspection standard MIL -STD-105E II
AQL 0.65
Warranty 12 months
Material and plating /
Housing PA66
Screws Steel , Ni plated
Contact Copper alloy , Tin plated
Wire connecting
https://www.nbmax.com.cn/product/

Minimum Order: 100 pieces

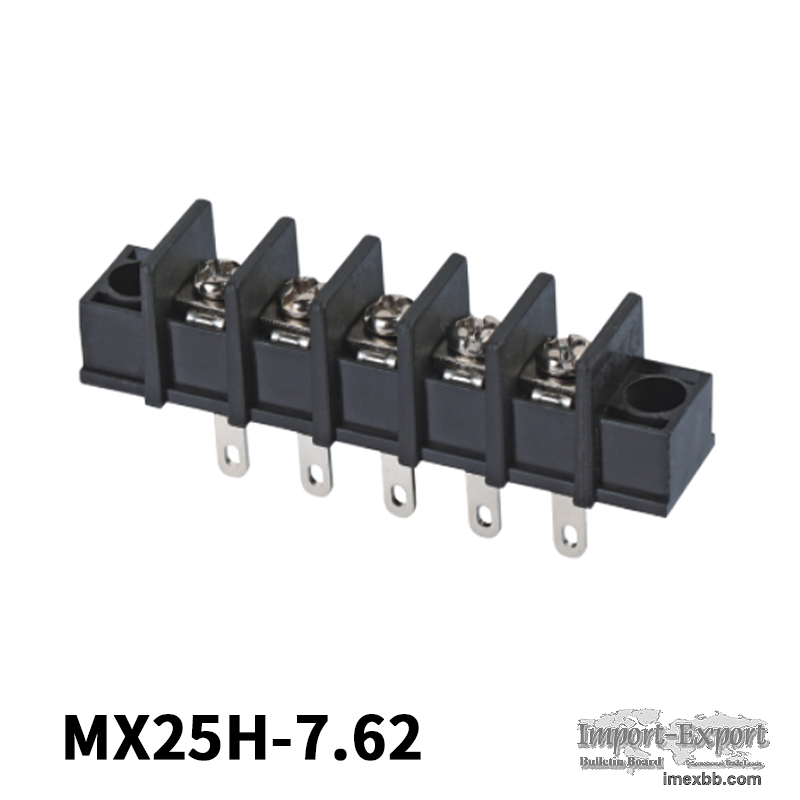

Barrier Terminal blocks MX25H-7.62
