Axial Internal Pressure Type Ripple Compensator

Product Description
Axial Expansion Joint

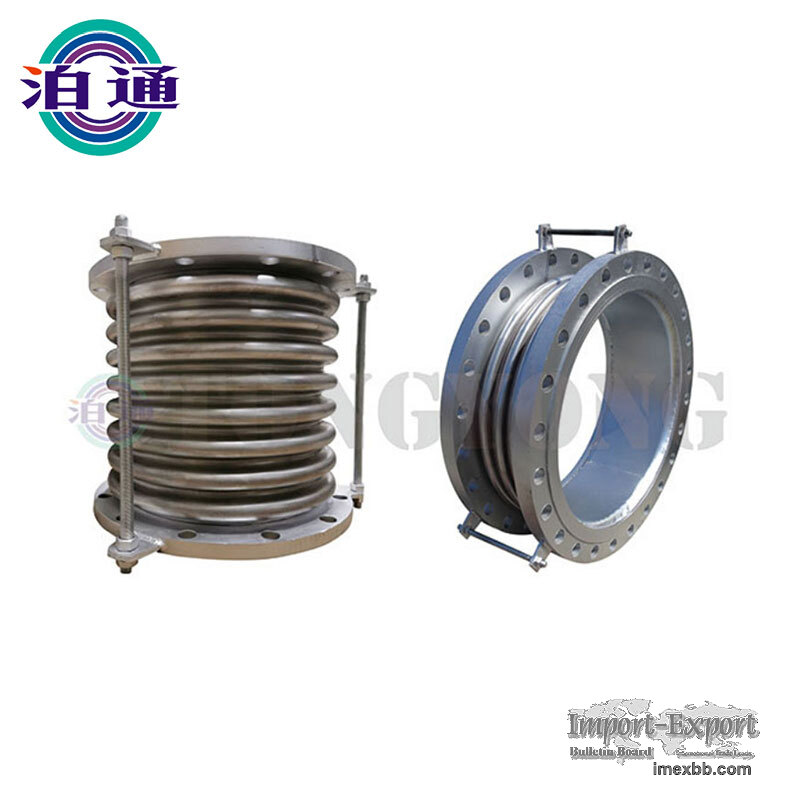

The axial internal pressure type ripple compensator（TNY Axial Expansion
Joint） is composed of a bellows and two-end connection pipes. The end
connection pipe is directly welded to the pipeline, or the flange is welded and
then connected to the pipeline flange. The tie rod on the compensator is mainly
used for rigid support during transportation or for pre-deformation adjustment
of the product. It is not a load-bearing part. This type of compensator is
simple in structure and low in price, so it is preferred.
The tie-down axial expansion joint consists of a single bellows element with an
end connection and a tie rod system.
Regardless of accessories such as liners and caps, this model can absorb all
types of motion in any length of pipe, but is mainly used to absorb axial
motion and a small amount of lateral motion.
Common problems in choosing bellows compensator:
Need to provide the manufacturer with working pressure, working temperature,
size, medium, compensation amount, the use of working conditions environment,
choose suitable conditions of the ripple compensator products.
