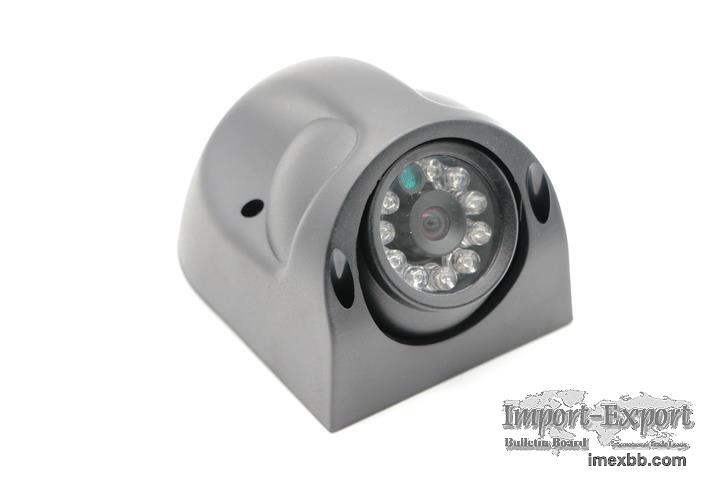

Automotive Infrared Camera

The 4K automotive infrared LED camera is a specialized camera designed for use
in vehicles that captures high-resolution images and videos using infrared (IR)
illumination provided by built-in infrared LED lights. These cameras combine
the benefits of high-resolution imaging with the ability to capture clear
images even in low-light or nighttime conditions using infrared illumination.

Performance Parameter of Automotive Infrared Camera
Model CK-IR-4k-V2.0 REMARKS
Image Sensor IMX415
Image Sensor Size 1/2.8
Effective Pixels 3840*2160
Pixel size 1.45μm x 1.45μm
Optical distortion ≤-1.2%
Image sensor Data output AHD
Maximum Frame Rates and Resolution Full resolution of 3840*2160 @30fps
SNR max 45dB
Dynamic range 76B
Min. Illumination ≥0.001LUX at F.No2.0 NO LED
Interface AHD
Power requirements 12V or 5V
Storage temperature -40℃ to 105℃
operating temperature -30℃ to 85℃
Power Consumption Max 500mW
LED IR-850/940 10 IR LEDs
OS All Automotive systems
Lens size M12 diameter；21mm TTL
Lens Construction 6G+IR
F/NO 2.0
EFL 2.46mm
FOV D:87° H:73° V:57° ±3°
Shooting distance Fixed Focus， 50cm-infinity



Details of infrared camera automotive
Features

4K Resolution: The night vision infrared car camera offers a resolution of 3840
x 2160 pixels, providing detailed and high-quality imagery in both visible
light and infrared modes.

Infrared Illumination: The infrared night vision camera for cars is equipped
with built-in infrared LED lights that emit infrared light. These LEDs are not
visible to the human eye but can be detected by the camera's sensor.

Day/Night Capability: The ir camera for car seamlessly transitions between
capturing images in visible light during the day and using infrared
illumination at night or in low-light conditions.

Infrared Cut Filter: Some infrared camera for car may have an infrared cut
filter that helps block visible light during infrared mode, enhancing the
camera's sensitivity to infrared wavelengths.

Real-time Monitoring: The camera provides real-time imaging and monitoring
capabilities, making it suitable for applications requiring immediate feedback.

Integration with Visible Light: Many infrared car camera can overlay infrared
images on top of visible light images, providing a comprehensive view of the
scene.

Durability: Automotive infrared LED cameras are designed to withstand the
challenges of a vehicle's environment, including vibrations, temperature
fluctuations, and potential exposure to elements.

Applications

Night Vision and Low-Light Driving: Infrared LED cameras provide enhanced
visibility during nighttime driving, allowing drivers to see clearly in
conditions where standard headlights might be insufficient.

Pedestrian and Animal Detection: The infrared illumination helps detect
pedestrians, cyclists, and animals on the road, contributing to advanced driver
assistance systems (ADAS).

Obstacle Detection: Infrared LED cameras can identify obstacles, debris, or
other vehicles in low-visibility scenarios, improving safety.

Collision Avoidance: The camera's infrared capabilities aid in detecting
potential collisions or hazards in real time, enabling the driver to take
appropriate action.

Parking Assistance: Infrared LED cameras assist in parking maneuvers by
providing clear visibility of obstacles and assisting the driver in avoiding
collisions.

Security and Surveillance: The 4k IR LED cameras can be used for vehicle
security, monitoring, and surveillance, especially in poorly lit or dark
environments.

Law Enforcement and Emergency Vehicles: Infrared LED cameras can be utilized by
law enforcement or emergency vehicles for enhanced visibility during night
patrols or emergency responses.

Commercial and Industrial Vehicles: Infrared LED cameras are valuable for
commercial and industrial vehicles that operate during nighttime hours, such as
delivery trucks or construction equipment.

Rear View and Backup Cameras: Infrared LED cameras are used as rear-view or
backup cameras to provide clear visibility when reversing, even in the dark.

Off-Road and Adventure Riding: Infrared LED cameras can be used for off-road
adventures, providing visibility in challenging terrains and low-light
conditions.

Mass production capacity: 80k/month

Customization: support, any kind of FPC or PCB shape, change the Lens size,
customizable FOV, housing, and so on.

There are many camera module companies, but we are one of the best choices for
you.

Minimum Order: 1 pieces
