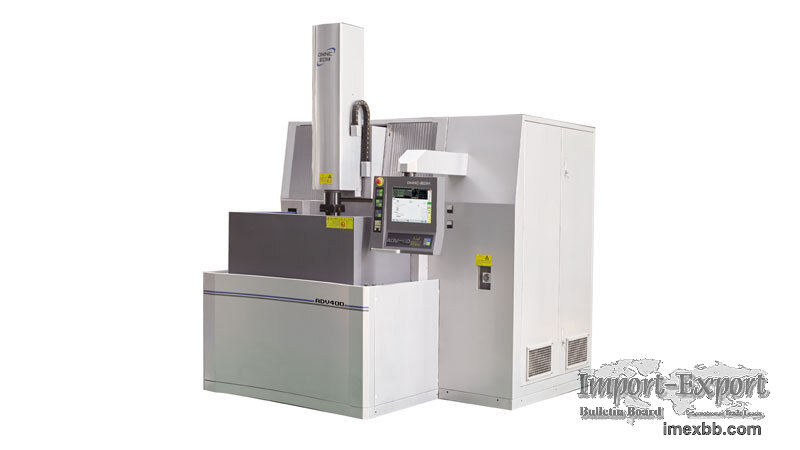

Automation CNC EDM Machine

CNC Die Sinking EDM Machine, also known as CNC EDM die sinking and CNC Spark
Erosion Machine provided by one of the professional CNC EDM machine suppliers,
DMNC, is a kind EDM machine that utilizes high-frequency power between positive
and negative anodes (electrode and workpiece), 3-axis or more axes controlled,
to break through the gap between electrode and workpiece, to create high
temperature to melt and remove metal to get needed profile cavity. It's like a
projective copy of the profile of the electrode on the workpiece.

ADV series new generation CNC EDM spark erosion machine is designed for
automation, there are many different flexible options. Equipped with a robot
and electrode and workpiece store, automatic EDM CNC machine itself can
realize small parts, large quantity, and man-free production, for this
solution, before production starts, the operator needs to set electrodes and
workpiece. Furthermore, the CNC milling center of electrode and CMM can be
brought in to realize full automation from electrode machining, electrode
checking, spark erosion machining, product checking and etc. The cost of labor
cost is increasing rapidly recently, to release the pressure of labor cost and
increase efficiency, automation application in EDM machining industry is born
for the future.

Automation CNC EDM Machine Highlights

Robot and electrode/workpiece station available to realize automation
application in electric discharge machining.

Latest 6th generation Windows7/Windows 10 platform control system

Abundant interfaces for communication

Automatic Up-and-down lifting working tank door for automation.

Intelligent automatic EDM discharging machining.

New expert database.

Excellent performance of both cooper and graphite electrode machining.

Multiple pages editing at the same time, no need to stop machining.

Min machining current 0.1A.

Best surface finish Ra≤0.08µm

Positioning accuracy ≤5μm

Imported SP grade linear guideway

C2 grade ball screw

3 years of aging treatment of casting of the machine.

High jump function, after serval times of regular jump discharging, Z axis move
higher, and then goes with regular jump height again, it is help for deep
groove and massive area machining.

Machining speed is about 30% faster than DOS platform discharging control
system.

Auxiliary learning function

Automation CNC EDM Machine Function Configuration of Controller

Minimum Order: 1 sets
