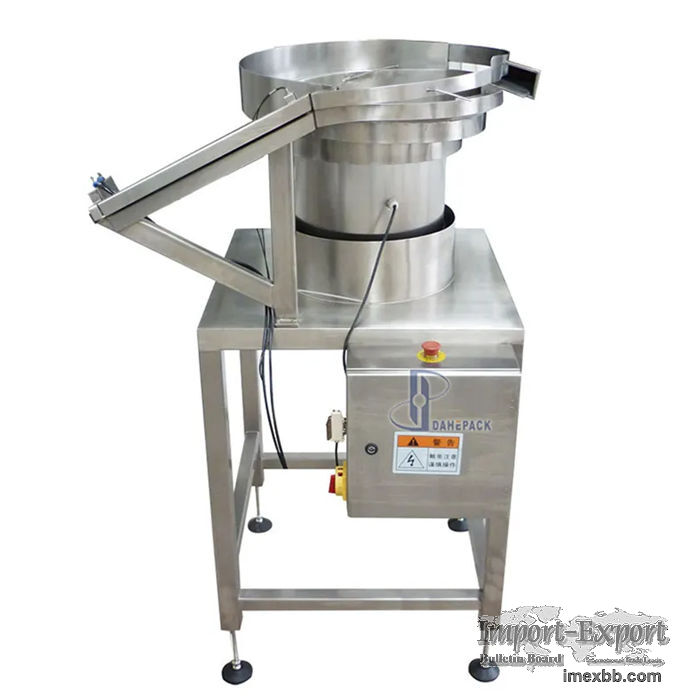

Automatic Scoop Feeder

This is a automatic scoop feeding machine designed to feed the scoop into metal
cans or bottles before the cans go to filling station! Scoops uncrambler with
vibrator which can help to queue the scoops on the feeding device before fall
down to the cans.
Working mode: Vibrating scoop unscrambling machine,Pneumatic scoop feeding
machine.
After cleaning and UV disinfection, the packaging containers are placed on a
conveyor belt and a spoon is placed into each container by a centrifugal scoop
feeder. The scoops are placed into the hopper, from which an inclined waterfall
feeder lifts them to the sorter, where they are positioned. Spoons are
processed through the discharge channel, maintaining orientation, and then drop
them into each container. A sensor at the scoop feeder inlet detects the
presence of a package and opens or closes the feeder accordingly.
No need to worry about product dust or scoops sticking/sticking out with the
Scoop Dropper System.
Casting speed:40-60pcs/min
Power supply:3P AC220V 60Hz.
Total power:0.37kw
Overall dimension:1500*700*1500mm
