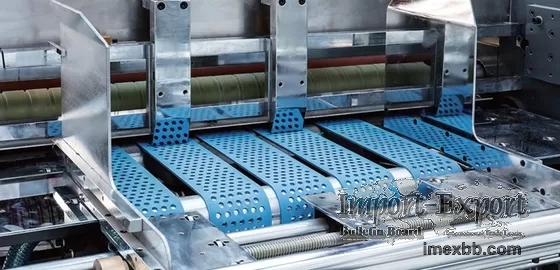

Automatic Litho Laminator Machine 20kw 150-800gsm 1700mm

Structural features:

◆ Adopting the world's leading transmission control system, only need to input
paper size system auto-tuning.



◆ Computerized high-speed fitting, up to 12,000 pieces per hour.



◆ Chuanliu-type air supply head, with four sets of forward nozzles and four sets
of suction nozzles.



◆ Feida Block adopts low stack cardboard, which can fit the paper to the pallet,
and can install track-assisted pre-stacker



◆ Use multiple sets of electric eyes to know the advance position of the bottom
line, and make the servo motor on both sides of the face paper to independently
rotate to compensate the upper and lower paper alignment, which is accurate and
smooth.



◆ Full-function electronic control system, using human-machine interface and PLC
program model display, can automatically detect operating conditions and work
records.



◆ Automatic glue replenishment system can automatically compensate for lost glue
and cooperate with glue recycling.



Parameters:

Model ZGFM1700
Max size 1700*15700
Min size 360*380
Paper 150-800g
Bottom paper ≤10mm ABCDEF corrugated board
Max speed 12000pcs/h
Power 15kw
Accuracy ±1mm



1. Product description



1.1 Structure:

A. Upper Paper Feeder: It can send stacks of 150-800gsm paper from above.

B. Bottom feed: It can send 0.5~1Omm paperboard from below.

C. Gluing mechanism: The glued water can be applied to the fed paper.

D. Regulatory organization - Fits the two papers according to the set tolerances.

E. Pressurizing Conveyor... Presses the attached paper and conveys it to the
delivery section



1.2 function:

The paper can be laminated with paperboard to increase the strength and thickness
of the material or special effects. After the die-cutting, it can be used for
packaging boxes, billboards and other purposes.





1.3 Principles:

The top paper is sent out by the upper paper feeder and sent to the start detector
of the positioning mechanism for detection. Then the bottom paper is sent out;
after the bottom paper is coated with glue on the glue wheel, the top paper and the
bottom paper are respectively conveyed to the paper Synchronous detectors on both
sides, after the detection, the controller calculates the error value of the paper
and the bottom paper, and the servo compensation device on both sides of the paper
compensates the paper to a predetermined position for splicing, and then
pressurizes the conveying. The machine presses the paper and conveys it to the
delivery machine to collect the finished product.




Paste paper --- 180 ~ 800g/m thin paper, cardboard.

Bottom paper---0.5~10m/m paperboard, single-sided cardboard, multi-layer corrugated
paper, pearl board, honeycomb board, styrofoam board.

Glue - resin, etc., PH value between 6 ~ 8, can be applied to the glue.
