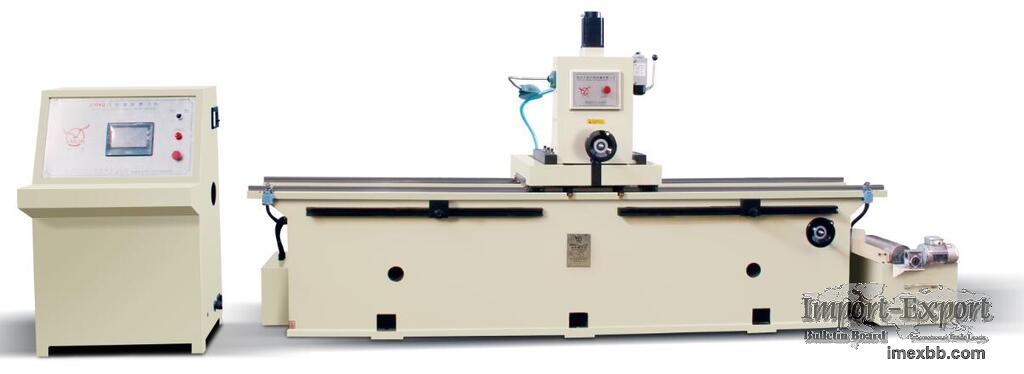

Automatic Knife Grinding Machine with magnetic filter Model DMSQ-HC

Product description:
It is the fourth generation of automatic and adjustable-speed knife grinding
machine which is based on Germany's technology. Its gantry-type machine body
adopts the carbon constructional quality steel. Its grinding head transmission
is linear guide and rack and pinion system, that the machine can last longer,
travel more stable drive.

This machine is applicable to grind all kinds of lath-shaped straight blades
(for example: the blades of linkage line knives, toilet paper scrapers, three-
knife trimmers, plastic pulverizers, paper cutting machines, wood chippers,
plate shears). It is an ideal grinding equipment for the printing, paper, wood,
plastic leather, making panels and other industries, and it is the best choice
for the grinding centers, packaging industries and enterprises.

Main feature:
- Mobile grinding head equipped with water-cooled Y series three-phase
asynchronous motor, this patented technology allows the cooling water spray
from the wheel center so that the effect of cooling becomes better
- Frequency conversion speed control devices: adjustable travel speed and
adjustable rotate speed of grinding head
- PLC programming control system (HMI)
- Automatic feed grinding wheel
- With memory, storage functions
- Grinding head uses paste-type cylindrical grinding wheel to extend one third
service life of grinding wheel, so that greatly reduces the cost of milling
knife
- Electric magnetic chuck: more uniform pressure and more straight-line
grinding make more efficiency
- Delay demagnetization devices: more secure and reliable during grinding
- With automatic centralized greaser: lubricating main box, lift pallet and
elevated screws
- Max. grinding width: 300mm on 22° angle
- The main transmission adopts rack and pinion transmission
- Knife rest adopts turbo worm transmission, can rotate freely
- Gantry-type body: carbon constructional quality steel which has been heat
treatment
- Imported linear guide
- Rotation angle of table: adjustable 0 ~ ±90 degree of knife rest
- Standardly equipped with magnetic filter

Optional device:
- Scraper (Doctor blade) clamp: dedicated for toilet paper device (extra cost)
