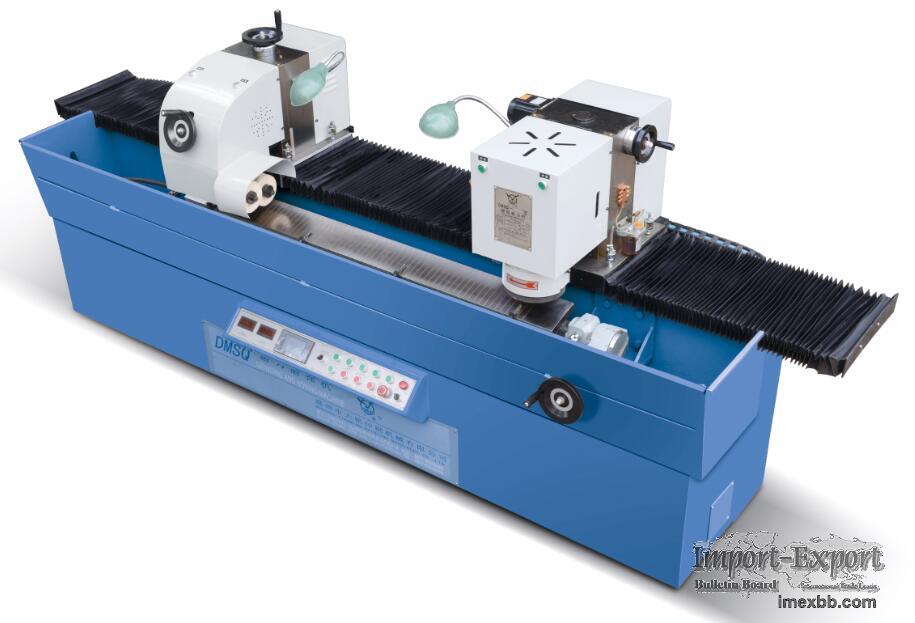

Automatic Knife Grinding and Honing Machine Model DMSQ-ZKE

Product instruction:
It's a fully automatic programmable knife grinding machine. It uses stepping
motor, PLC programming control systems, can automatically adjust the times of
coarse grinding and fine grinding. It can automatically feed grinding wheel
with memory, storage and dynamic tracing functions.
It's with double-head design sets grinding, polishing and deburring to one
machine, more suitable for medium and small book printing factory.

Main feature:
- PLC programming control system (HMI)
- Automatic feed grinding wheel
- With memory, storage functions
- Double-head design sets grinding, polishing and deburring to one machine
- Electric magnetic chuck: more uniform pressure and more straight-line
grinding make more efficiency
- Delay demagnetization devices: more secure and reliable during grinding
- With centralized greaser: lubricating main box, lift pallet and elevated
screws
- Mobile grinding head equipped with Y series three-phase asynchronous motor
- Max. grinding width: 300mm on 22° angle
- Fixed grinding head stroke
- The main transmission adopts rack and pinion transmission
- Knife rest adopts turbo worm transmission, can rotate freely
- Cantilever-type machine body structure: lathe bed casts with mezzo forte cast
iron
- Linear guide
- Rotation angle of table: adjustable 0 ~ ±90 degree of knife rest
- With dust cover device

Optional device:
- Magnetic filter (extra cost)
- Scraper (Doctor blade) clamp: dedicated for toilet paper device (extra cost)
