Automatic Inspection Straight Length Busbar Machine , Busbar Fabrication Ma

Automatic Busbar Inspection Machine with High Voltage Withstanding
Insulation Resistance Grounding Test Functions



Busbar bending machines from us set the industry standard in precision and
reliability. Whether you’re bending copper busbar, aluminum bar, steel bar,
or any type of metal bar stock, our proprietary technology delivers the
consistency and efficiency that today’s businesses demand.



Overview

The equipment is used for busbar online inspection.
To improve the busbar production level and quality.
To decrease the labor’s working force and improve the working efficiency
and production efficiency.


Busbar Inspection Machine Function introduction

Busbar Automatic Production Line is composed of three parts, feeding
positioning station, inspection station and discharge station. When the
busbar enters the feeding position, the control system will select the right
testing fixture to start testing from the information identified by bar code
or previous assembly line. Three tests will be performed including HV
withstanding test, insulation resistance test and grounding test. After test
is finished, testing report will be generated.



Busbar Inspection Machine Equipment data on automatic busbar inspection line



No. Parameters
Model KD-JCX/NC-E/H-6
Busbar Height 100mm~650mm
Busbar Length 1200mm~6000mm
Busbar Type Straight length type
Position Type Unilateral / Middle
Working Efficiency

2 min/piece(testing time is adjustable.)

Servo Nos 2 axis( Z axis/X axis)
Vision System

Phase error judgment( optional)

Printing System

Bar code printing/ Report printing( optional)

High Voltage Withstanding Test

0~5000V
Insulation Test 1~1000V
Grounding Test 0~25A
Power

380~415VAC 50~60Hz 5kW
Equipment Dimension L12000mm*W1200mm*H1900mm

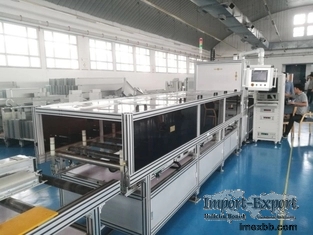

Automatic Inspection Straight Length Busbar Machine , Busbar Fabrication
