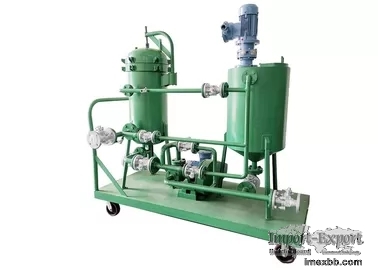

Automatic Industrial Cream Separator , Centrifugal Solids Separator

PRODUCT DESCRIPTION
Automatic Industrial Cream Separator , Centrifugal Solids Separator

Industrial Cream Separator Working Principle

Industrial Cream Separator belongs to stainless steel woven mesh filter. It
is the new generation filtration equipment that we developed referencing
foreign technology, the filter has unique and compacted design, and high
efficiency. It does not consume the filter cloth, filter paper or filter
cartridge, just uses a little filter aid, so the filtration cost is low. And
the machine is easy to operate, maintain and clean. Manual discharging and
auto discharging are available according to customer's requirement. The
filter area ranges from 2m2 to 200 m2. The housing material can be carbon
steel or stainless steel to meet clients' different needs.

Industrial Cream Separator competitive advantage:

With no cloth and filter paper, it greatly reduces filtration costs.
The fully closed operation is environmentally friendly without material loss
Vibration residue falling greatly reduces labor intensity and realizes
continuous operation
Residue discharging through the pneumatic valve greatly reduces labor
intensity of workers.
The residues in the liquids are subject to activated carbon (carclazyte)
filtering or bleaching filtering. It can completely replace the plate and
frame filter and is a revolutionary device in the filter industry.

Industrial Cream Separator Outline form & assembly size

Model Shell diameter Space between filter leaf Inlet/outlet caliber
Overflow port Discharge port Height Floor Spare
NYB-25 ∅1100 70 DN50 DN40 DN500 3020 1810×1430
NYB-30 ∅1200 70 DN50 DN40 DN500 3150 2030×1550
NYB-36 ∅1200 70 DN65 DN50 DN500 3250 2030×1550
NYB-40 ∅1300 70 DN65 DN50 DN600 3350 2130×1560
NYB-45 ∅1300 70 DN65 DN50 DN600 3550 2130×1560
NYB-52 ∅1400 75 DN80 DN50 DN600 3670 2230×1650
NYB-60 ∅1500 75 DN80 DN50 DN600 3810 2310×1750
NYB-70 ∅1600 80 DN80 DN50 DN600 4500 3050×1950
NYB-80 ∅1750 80 DN80 DN50 DN600 4500 3210×2100
NYB-90 ∅1850 80 DN80 DN50 DN600 4650 3300×2200

Main technique

Model Filtration area ㎡ Filter cake volume L Treatment Capacity
Work Pressure Mpa Work temperature ℃ Machine volume L
Machine weight Kg
Oil Resin Beverage Rated pressure Max pressure
NYB-25 25 500 5-7 12-19 16-21 0.1-0.4 0.5 ≤150 1900
2000
NYB-30 30 600 6-8 14-23 19-25 2300 2500
NYB-36 36 720 7-9 16-27 23-31 2650 3000
NYB-40 40 800 8-11 21-34 30-38 2900 3200
NYB-45 45 900 9-13 24-34 36-44 3200 3500
NYB-52 52 1040 10-15 27-45 42-51 3800 4000
NYB-60 60 1200 11-17 30-52 48-60 4500 4500
NYB-70 70 1400 12-19 36-60 56-68 5800 5500
NYB-80 80 1600 13-21 40-68 64-78 7200 6000
NYB-90 90 1800 14-23 43-72 68-82 7700 6500

Industrial Cream Separator Application:

Oil industry: crude oil, bleached oil, hydrided oil, radonized oil, stearin,
fatty acid, etc.
Petrochemical products: diesel oil, lubricating oil, paraffin and mineral
moil products
Organic chemical products: various organic acid, ester, benzene and aldehyde

Introduction of Company:

Juneng Group employs a team of well-trained professional, adopts advance EPR
production management model in cooperation with state–of–the–art
apparatus and process i.e. CNC Turner, Machine Center, Highly Accuracy Test
Instrumentation, Quality and Process Control System to ensure quality,
stability, and reliability of every product.
