automatic hot seal capping machine for Stand Up Tomato Paste Ketchup

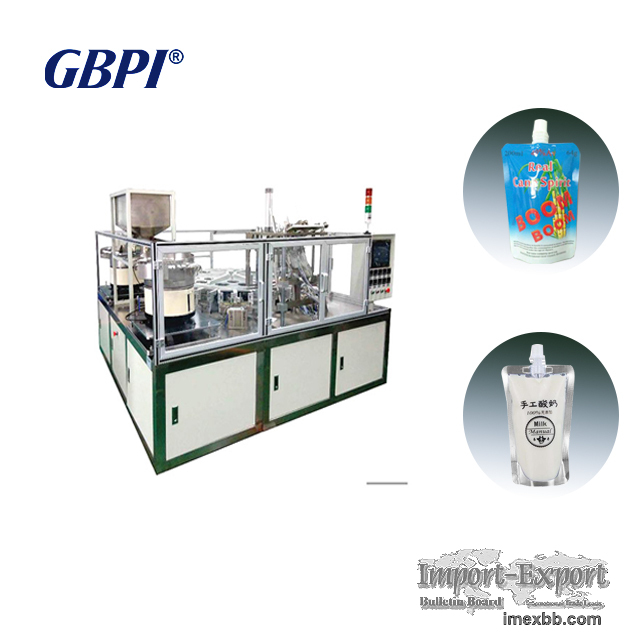

GF1600-B Spout Sealing Machine is specialized for inserting spouts and sealing bags
fully automatically. It is applied to a variety of spouts and bags of different
diameters and lengths, such as standing-up bags, 3-side sealing bags, and doypacks.


Product Fectures
1.Fully automatic; a single set of machine needs only one operator, and the
operator just needs to load enough spouts and bags at intervals.
2.Adopting round disc structure, the equipment occupies small space.
3.All the components are made of aluminum and stainless steel, and meet the
hygienic and quality requirements of food, pharmaceutical, environmental and
industries.
4.Easy to use with precise control; runs stably and works long hours continuously.
5.Adopts imported temperature control module, SMC pneumatic component, Omron PLC
control unit to insure the quality, performance, and life of the machine.
6.Automatically detects faults, gives alarms, stops, diagnoses and show where the
fault is.
System Structures
♦ The machine consists of spout delivery system, bag delivery system, heat sealing
system, bag collecting system, central control system and base.
♦ The spout delivery system consists of chutes, vibrating disks and lead rails.
The photoelectric sensors can induce the spouts to control the charging action.
♦ The bag delivery system utilizes the pneumatic sucker.The delivery and sealing
system have double positions, which doubls the efficiency.
♦ The heat sealing system includes a big turntable, heat sealing blades and
workstations. There are 6 sets of heat sealing blades: 1set for preheating, 4 for
heat sealing and 1for cooling.
♦ The workstations are adjustable for bags of different sizes. Customers can order
diverse sealing blades for spouts of various types.
♦ Every sealing blade has an independent temperature controller,and runs and
debugs independently.
♦ The bag collecting system consists of finished products collecting table and
waste product recycling table. Photoelectricity sensor and pneumatic control makes
the manufacturing process truly automatic.
♦ The control panel deploys a touch screen, on which all kinds of parameters can
be set, and working status in real time such as complete amount, time, success rate
and failure rate can be show.
♦ Other parts: 12 temperature control meter, 18 pressure gages, and 2~4 emergency
stop buttons (1 button on each side of the machine).
♦ The base is easy to dismantle, transport and assemble.
Technical Specifications
Bag types: self-stand bags, three-side sealing bags, doypacks, irregular bags and
cubic bags
Spout standard: diameter 8.5mm or 10mm, customization is available
Bag width: medium tube 60-120mm, inclined tube 60~150mm
Bag length: medium tube 70~210mm, inclined tube 60~150mm
Processing speed: medium tube 90pcs/min (customized bag rack,three-side sealing
bags and doypacks)
inclined tube 80pcs/min (irregular bags)
Main transmission structure: splitter (0 degree error)
Servo motor: special flange gear-down motor
Sealing method: heat sealing
Sealing blades: 6 sets-- 1 set for cooling.
Controlling method: PLC controlled
Temperature control: PID controlled, precision: 0.1 ℃
Sense method: photoelectric sensed
Cooling device: tube and water (current velocity: 0.5m/s)
Bag collecting quantity: Dual-track collect bags, each track 40~50 pcs
Power: 13KW
Electric source: 380V, in three-phase four-wire system
Machine size: about 240cm(width) x 220cm(length) x 230cm(hight)
Weight: 2000kg

Minimum Order: 1 sets
