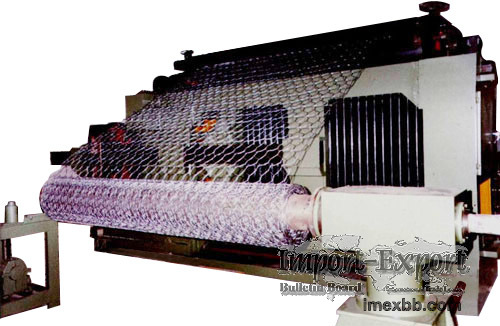

Automatic Hexagonal Wire Mesh Machine

The Automatic Hexagonal Wire Mesh Machine, also known as the Gabion Mesh
Machine, is expertly engineered to manufacture gabion mesh and heavy-duty
hexagonal wire mesh with a range of mesh sizes and widths. This machinery can
apply coatings such as heavy galvanization and zinc. For enhanced corrosion
resistance, wires coated with zinc and PVC are also supported.

Mesh Sizes
The machine is capable of producing mesh in several sizes, including:
60 x 80 mm
80 x 100 mm
100 x 120 mm
120 x 150 mm
180 x 200 mm
Additional custom sizes can also be accommodated.

Maximum Netting Width
The machine can handle mesh widths up to 4300 mm.

Wire Diameter Capacity

Galvanized Wire: 3 - 4 mm
PVC Wire: 4.1 - 5.1 mm
Power Requirements
The machine operates with a 22 kW power supply.
Physical Dimensions and Weight

Size: 7200 x 1400 x 2400 mm
Weight: 15 MT
Production Output
It can produce between 165 and 500 meters per hour.

Features

Automatic Stop System (Optional): Automatically halts the machine once the
coiling process is complete or in case of wire breakage.
Infrared Ray Safety Protection System (Optional): Provides additional safety
during operation.
Automatic Oil System: Enhances operational efficiency and reduces manual
maintenance requirements.
This advanced machine is ideal for producing durable hexagonal wire mesh for
gabions, reinforcing construction projects, and other applications. Its
automated features, high production output, and flexibility in mesh sizing make
it an invaluable asset for wire mesh production.
