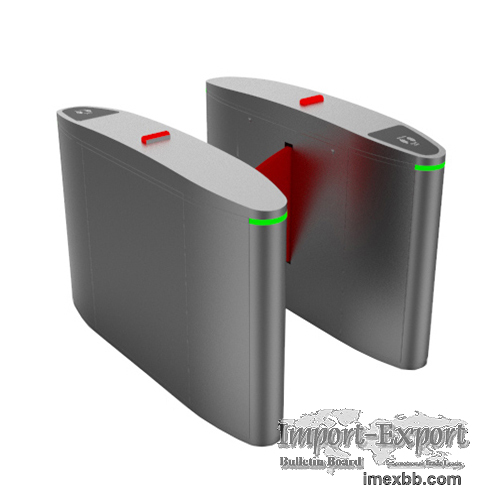

Automatic Flap Gate Turnstile JDYZ-16

Reliable and affordable automatic flap gate turnstile, automatic flap turnsile adopts a streamlined design with a more modern aesthetic to meet the latest architectural trends

Automatic flap gate turnstile JDYZ-16 provides bi-directional and unidirectional access and free passage modes, ensuring fast, smooth and reliable access for different applications. Automatic flap turnstile gate JDYZ-16 comes with infrared sensors providing high detection accuracy, preventing clipping and collision and ensuring the safety of pedestrians. Any illegal intrusion or tailgating attempts will trigger a sound alarm. Furthermore, automatic turnstile flap gate JDYZ-16 offers quick and smooth motorized retractable wings for bi-directional operation in a fast, smooth and reliable way with low noise and energy saving.

Automatic flap turnstile gate JDYZ-16 adopts a streamlined design with a more modern aesthetic to meet the latest architectural trends, widely used for corporate lobbies, office buildings, data centers, government facilities, stadiums. As quick throughput is available with them, automatic turnstile flap gate JDYZ-16 is often also implemented in subways and other public transportation terminals.

Automatic Flap Gate Turnstile Features
1. Easily integrates to access control and fire safety systems through dry contact
2. Forcibly enter or tailgating attempts will be prompted by audible & visible alerts
3. High performance and robustness
4. Unique design meets the latest architectural trends
5. Physical security improved with fast double retractable wings for immediate lane closure
6. Quick and smooth motorized retractable wings for bi-directional operation
7. Fast user throughput
8. In case of emergency, the flap turnstile arm will open automatically to allow free access
9. Obstacles automatically open to free the passage
10. Stable and efficient operation with lower noise

Automatic Flap Gate Turnstile Applications
Company premises
Power plants
Industrial plants
Government facilities
Stadiums
Airport and port areas
Public transportation terminals

Automatic Flap Gate Turnstile Parameters
Housing Material: #304 stainless sheet
Dimension: 1400 x 300 x 980mm
Power Supply: AC220V / AC110V, 50/ 60 Hz
Channel Width: 550mm
Drive Motor: DC 24V brush motor
Pass Speed: 35~40 persons per minute
Input signal optional: Dry contact signal or +12V level signal or DC12V pulse signal
Rotating Direction: Bi-directional
Communication interface: RS485
Arm drop when power failure: Yes
Open Time: 0.2 second
Life Cycle: 3 million times
Working Temperature: -30°C~+70°C
Working Environments: Indoor, outdoor (with shelter)

FAQs
What is automatic flap gate turnstile?
Automatic flap gate turnstile is a simple and cost-effective waist high optical turnstile which is made up of two cabinets connected by invisible infrared beams. These cabinets use the infrared beams to detect whether pedestrians have passed through the optical turnstile lane. The illegal intrusions or tailgating attempts will trigger a visual or audible alert . If the turnstile is supplied with a physical barrier, the barrier will refuse to open along with the alerts to effectively deny access. Automatic flap turnstile gate is able to be integrated with various access control systems and can be controlled remotely. Automatic turnstile flap gate is mostly used at commericial and industrial places such as exhibitions, supermarkets, public transports.

How does automatic flap gate turnstile works?
Automatic flap gate turnstile comes with visible wings which operate in two-directional movements, when closed, the wedge-shaped wings meet near the top forming a barrier. When opened, the wings fully retract into the cabinet, creating free passage. Security flap barrier turnstile is supplied with infrared sensor to ensure that only one person enters for each authorized credential at one time. The pedestrians shows their valid credential before entry, the optical flap turnstile will open for free access, and automatically close after access completed or out of passing time if pedestrians do not pass within pre-set time. Automatic turnstile flap gate provides a function that protects a person from any injury caused by the closing of the flap barrier wings during the person’s pass-through duration.

Automatic flap gate turnstile applications:
Automatic flap gate turnstile adopts streamlined design with a more modern aesthetic to meet the latest architectural trends. The stainless steel construction and beautiful design allow them to be used in lavish corporate lobbies, office buildings, data centers, government facilities, public transportation systems, stadiums and more. Automatic flap turnstile gate provides very quick throughput, so they are often also implemented in subways and other public transportation terminals.

Automatic flap gate turnstile types:
According to different drive motor, automatic flap gate turnstile can be divided into
Brush motor automatic flap gate turnstile: such flap type turnstile uses DC24V brush motor, it is an ideal crowd control managment requiring simple and cost-effective operation.
Brushless motor automatic flap gate turnstile: such flap type turnstile uses DC24V brushless motor, featuring fast opening speed, barrier-free, silent, safe to use,easy to use and maintain. Because of modular design, simpler structure and more convenient maintenance. The brushless motor is powerful, no wear, no noise, and its life is much longer than other motors.

Optical turnstile Variation:
Automatic flap gate turnstile is a classic type of waist high optical turnstiles which can come with a physical barrier or they can be barrier-free. Barrier-free optical turnstile relies solely on infrared beams to detect and deter passage, while barrier optical turnstiles utilize the internal infrared technology coupled with a physical barrier to provide added security against unwanted entry. optical turnstile cabinets can be installed as close to or as far apart from each other as needed. Waist height optical turnstile gate provides flexibility and allows lanes to be handicap accessible.

What are the advantages of automatic flap gate turnstile?
1) Supplied with fault self-checking and alarm prompting function, which is convenient to maintain and use;
2) The running status is programmable directly from the control board
3) Mechanical structure & induction anti-pinch functions
4) Sound and light alarm function
5) Anti-shock function, the swings are automatically locked if no open signal is received.
6) Telescopic boom synchronization function;
7) Automatic reset function. when open, if the pedestrians do not passage within the specified time, the system will automatically cancel the user’s permission to pass this time.
8) Double flap turnstile automatically open after power failure, and automatically close when powered on;
9) Flexibly integrate a variety of access control systems
10) One-way or bidirectional access mode

Minimum Order: 2 sets
