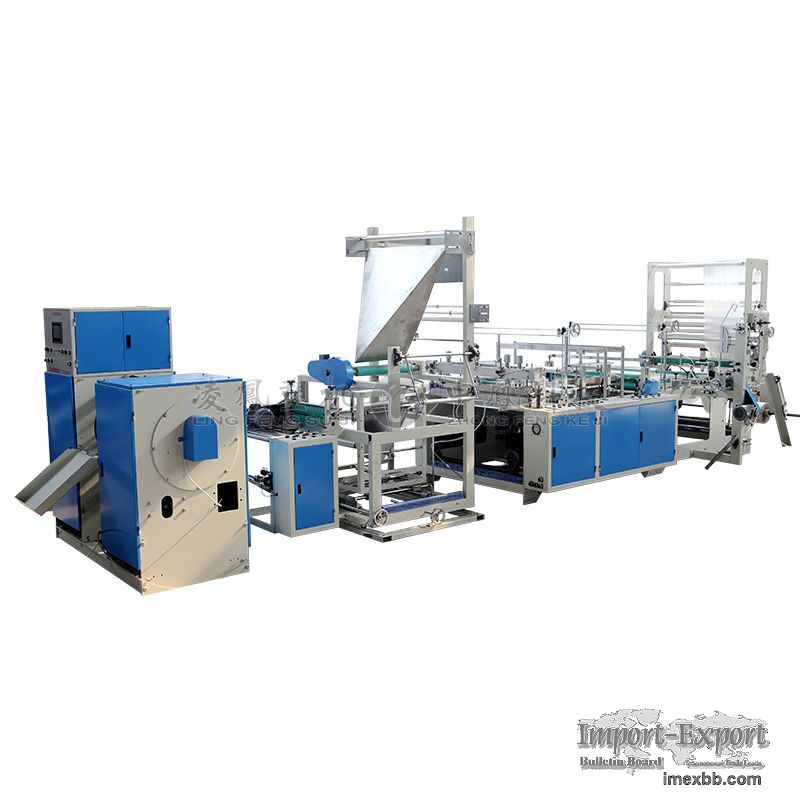

Automatic Draw Tape Bag-on-rolling Making Machine With Coreless

Automatic Draw Tape Bag-on-rolling Making Machine With Coreless

Technology Parameter
Model No. LF- JDDT-1000
Lane Quantity One Line
Bag making width 400-900mm
Bag making length 300-750mm
Bag making speed 40-100pc/min
Max line speed of film 50 m/min
Bag making thickness 0.008-0.02mm
Bag making methods Rolling draw tape bag
Machine Weight(L*W*H) 3000kg
Overall Size 7200*2000*1900mm

We are Shopping Bag Making Machine Supplier.

Details Configuration
Items Parameter
Machine main controller PLC & Touch Screen operation system, Power
Switch24V,100w (Taiwan Brand)
Power of main motor 1.1kw, 220V (Chinese Brand)
Main motor controller 1.5kw 380v Inverter controller (Chinese Brand)
Bag making length controller 3.7kw servo motor, roller diameter 80mm, length
400mm.
Temperature controler Two Areas Heating, Including Warning Device
Temperature control precision ±1℃
Total heating power Seal knife heating power tube 1.2kw(220V), length
380mm, diameter 16mm. Seal knife 375mm. Bottom base heating 400W(110V)
Releasing Film Roll Method 550w gear motor
Releasing Motor Inverter 0.75kw Chinese Brand
The downtime of break controller Photoelectric Sensor (Panasonic)
Loading Method Pneumatic, 100*250mm Cylinder
Conveyor Roll Motor 550w Horizontal type AC motor
Conveyor Roll Inverter 0.75kw Chinese Brand
Traction Motor 550wHorizontal type Ac motor
Traction Inverter 0.75kw Chinese Brand
ESP device Width 400mm
Winding Controller PLC (2416MT) & Touch Screen (7 inch) control, 24V
electric power (100w)
Winding Motor Power 550w, AC motor
Winding motor controller 0.75kw inverter controller*2, Chinese brand
Turn plate controller 350A Stepping motor
Contactor Switch and Mid relay Schneider, France
Magnetic valve SMC, Japan
Bearing NSK, Japan
Install power About 19.5kw
Working Power Consumption About 6kw per hour
