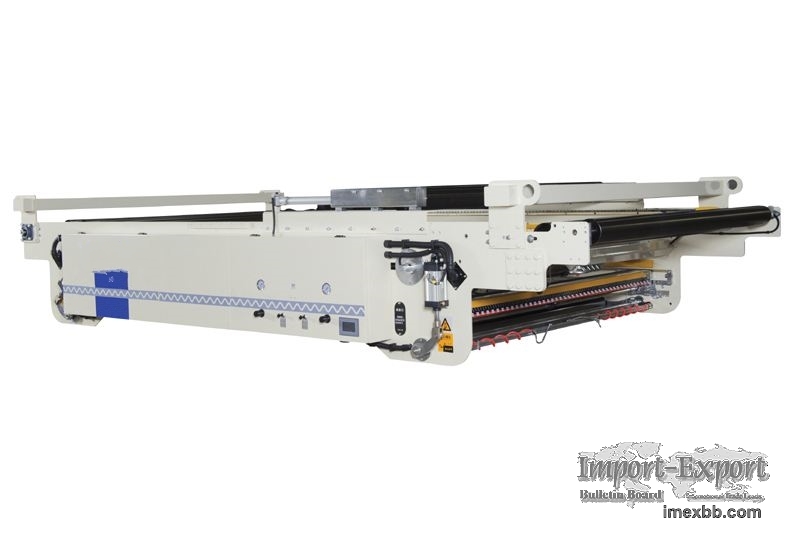

Auto Splicer

Huatao Group - Corrugator Belt & Spare Parts
Web: www.htwirebelt.com www(dot)htwirebelt.com
Email: maple@huataogroup.com maple(at)huataogroup.com
Tel: 0086 133 8311 0583
WhatsApp: 0086 133 8311 0583

Product Description
The Auto Splicer functions as a central element for smooth, continuous
operation, fast and helps to increase production output and saving production
cost during the corrugated cardboard production process.

Auto Corrugated Plant Automatic Splicer Function:
1. No paper tail connecting, reduce the loss of the base paper
(the overlap of the base paper about 40mm width).
2. When the paper truck remove, automatically transferred
out,vacuum-adsorbed, easy to operate, and fully automatictension control,
paper-connecting zero error.
3. All adopt PLC automatic control.
4. When the buffer wheel pull for the first time, it's easy to pull
and aligned automatically.
5. Collecting paper controlled by cylinder, will not cause the broken tile and
blistering problem.

Design speed: Model 300-280 m/min(Flute liner)250m/min(Top liner)
Model 400-380 m/min(Flute liner)250m/min(Top liner)
Paper Connection: overlap connecting
Design width: the maximum paper width can reach 2550mm
Weight of the original paper: 50g/m2~350g/m2
Paper reaction completion time: about 1 second
Gas source: a minimum of 0.6MPa dry clean air source
Power demand: power supply:380V, 50Hz, 20A control power:12V,24V
Paper frame brake: pneumatic brake/ magnetic powder brake

Minimum Order: 1 sets
